Same model may have multiple batches, images only for reference.

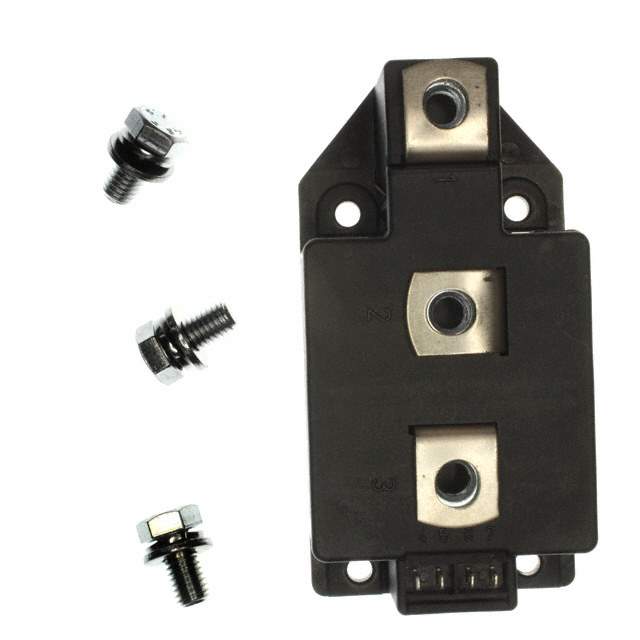

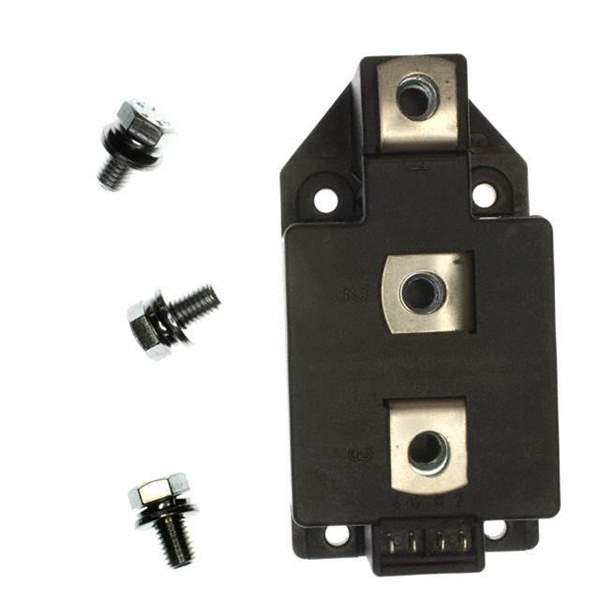

MCC250-14IO1 Real Image
Same model may have multiple batches, images only for reference.

MCC250-14IO1

Part No MCC250-14IO1
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description Thyristor Modules Thyristor/Diode Modules | THYRISTOR DUAL 1400V 450A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Status Obsolete
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.4kV
Current - On State (It (AV)) (Maximum) 287A
Current - On State (It (RMS)) (Maximum) 450A
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 9000A, 9600A
Current - Hold (Ih) (Maximum) 150mA
Temperature Range - Operating -40°C ~ 140°C
Mounting Style Chassis Mount
Manufacturer Package Y2-DCB
Family Part Number MC*250
Manufacturer Pack Quantity 2
MSL Level Not Applicable
Win Source Part Number 1220590-MCC250-14IO1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCC250-14IO1 CAD Model

Description

The MCC250-14IO1 is a product manufactured by IXYS.

  • Product Type: Series connection with two SCRs
  • Applications: Power supplies, motor control, and lighting systems
  • Voltage-off state: 1.4kV
  • Non-repetitive surge 50Hz: 9000A
  • Non-repetitive surge 60Hz: 9600A
  • Operating Temperature: -40°C to 140°C
