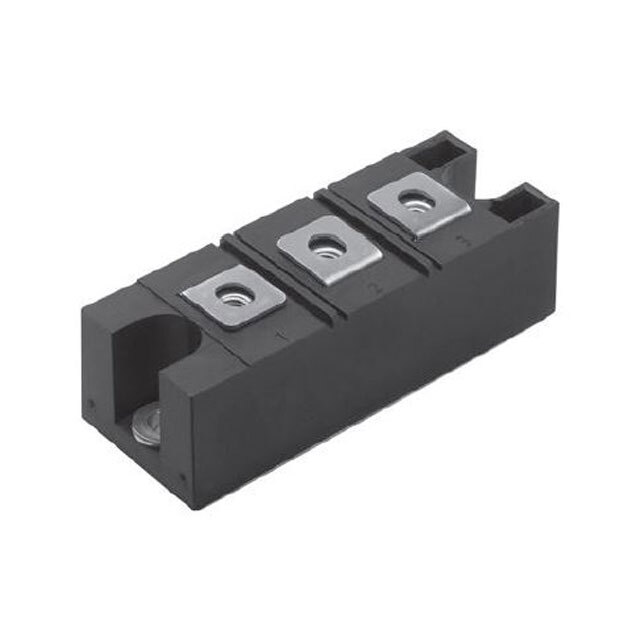

VS-VSKT56/16

Part No VS-VSKT56/16
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR MODULE 1.6KV 135A ADD-A-PAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 60 A
Current - On State (It (RMS)) (Max) 135 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1200A, 1256A
Current - Hold (Ih) (Max) 200 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Case / Package ADD-A-PAK (3 + 4)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1607934-VS-VSKT56/16
Ultra Librarian 3D Model Ultra Librarian VS-VSKT56/16 CAD Model
