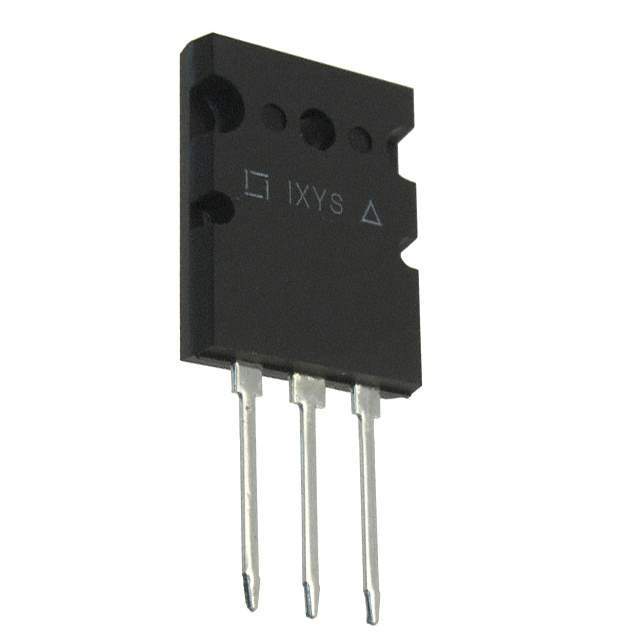

IXYB82N120C3H1

Name: IXYB82N120C3H1
Brand: IXYS
SKU: 1324420
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IXYB82N120C3H1
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 1200V 164A 1040W PLUS264 / IGBT 1200 V 164 A 1040 W Through Hole PLUS264™
Datasheet	IXYB82N120C3H1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer	IXYS
Packaging	Tube
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	164 A
Current - Collector Pulsed (Icm)	320 A
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 82A
Power - Max	1040 W
Switching Energy	4.95mJ (on), 2.78mJ (off)
Input Type	Standard
Gate Charge	215 nC
Td (on/off) @ 25°C	29ns/192ns
Test Condition	600V, 80A, 2Ohm, 15V
Reverse Recovery Time (trr)	420 ns
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Through Hole
Case / Package	TO-264-3, TO-264AA
Supplier Device Package	PLUS264™
Base Product Number	IXYB82
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	-IXYB82N120C3H1
Standard Package	25
Win Source Part Number	1324420-IXYB82N120C3H1
Ultra Librarian 3D Model	Ultra Librarian IXYB82N120C3H1 CAD Model

Description

The IXYS IXYB82N120C3H1 is an electronic component that is manufactured by IXYS.

Voltage - Collector Emitter Breakdown (Max): 1200 V
Current - Collector (Ic) (Max): 164 A
Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 82A
Gate Charge: 215 nC
Switching Energy: 4.95mJ (on), 2.78mJ (off)
Win Source Part Number: 1324420-IXYB82N120C3H1
Packaging: Tube
Standard Package: 25
Mounting: Through Hole
