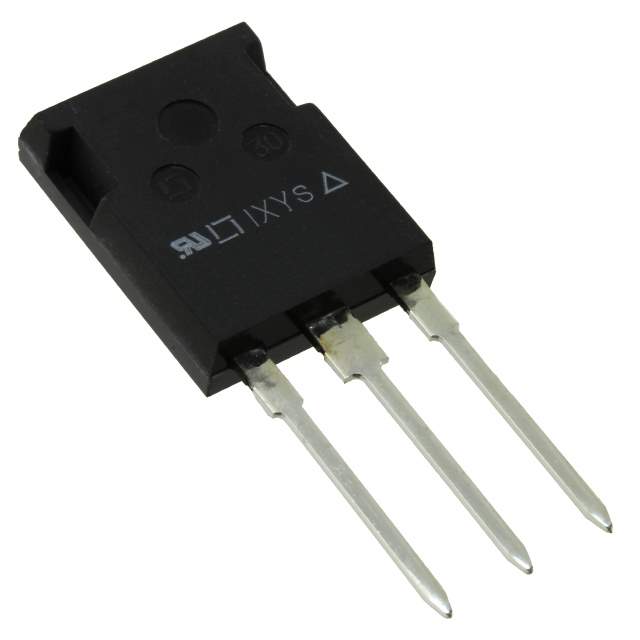

IXGR60N60C2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Obsolete(EOL)
IGBT Type PT
VCEO Maximum Collector-Emitter Breakdown Voltage 600V
Maximum Current Collector 75A
Pulsed Collector Current 300A
Collector-emitter saturation voltage(Max) 2.7V @ 15V, 50A
Maximum Power Dissipation 250W
Total Switching Energy(Ets) 490μJ (off)
Input Type Standard
Gate Charge 140nC
Turn-on and Turn-off delay time 18ns/95ns
Testing Conditions 400V, 50A, 2 Ohm, 15V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package ISOPLUS247
Win Source Part Number 1049679-IXGR60N60C2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXGR60N60C2 CAD Model

Description

The IXYS 1049679-IXGR60N60C2 is a high-quality discrete semiconductor product that is designed to offer superior performance in a wide range of electronic applications.

  • Manufacturer: IXYS
  • Product Name: 1049679-IXGR60N60C2
  • Maximum Current Collector: 75A
  • Maximum Power Dissipation: 250W
  • IGBT Type: PT
  • Packaging: Tube/Rail
  • Mounting: Through Hole
  • Category: Discrete Semiconductor Products
  • Operating Temperature: -55°C to 150°C (TJ)
  • Case / Package: ISOPLUS247
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 600V
  • Collector-Emitter Saturation Voltage(Max): 2.7V @ 15V, 50A
  • Total Switching Energy(Ets): 490μJ (off)
  • Turn-On Delay Time: 18ns
  • Turn-Off Delay Time: 95ns
  • Testing Conditions: 400V, 50A, 2 Ohm, 15V
