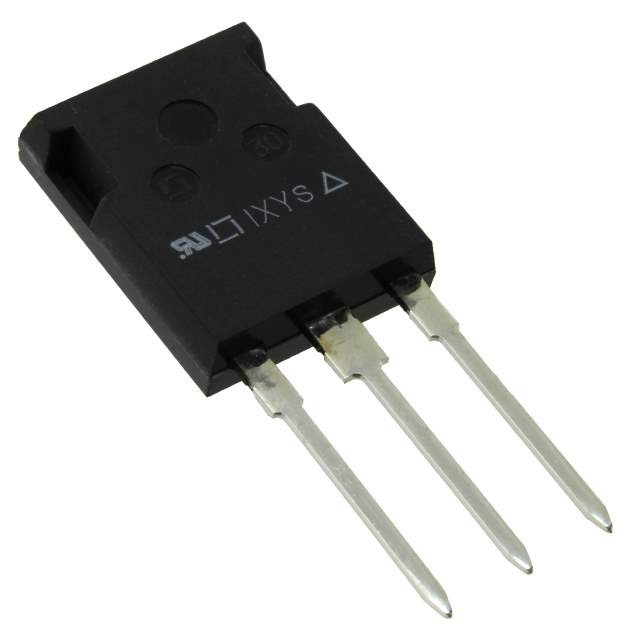

IXGR40N60C2 Real Image
Same model may have multiple batches, images only for reference.

IXGR40N60C2

Part No IXGR40N60C2
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 600V 56A 170W ISOPLUS247 / IGBT PT 600 V 56 A 170 W Through Hole ISOPLUS247™
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr IXYS
Series HiPerFAST™
Package Tube
Product Status Obsolete
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 56 A
Current - Collector Pulsed (Icm) 200 A
Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 30A
Power - Max 170 W
Switching Energy 200µJ (off)
Input Type Standard
Gate Charge 95 nC
Td (on/off) @ 25°C 18ns/90ns
Test Condition 400V, 30A, 3Ohm, 15V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package ISOPLUS247™
Base Product Number IXGR40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 30
Win Source Part Number 1023298-IXGR40N60C2
Ultra Librarian 3D Model Ultra Librarian IXGR40N60C2 CAD Model

Description

The IXYS IXGR40N60C2 is a PT IGBT transistor that comes in a tube package.

  • Voltage - Collector Emitter Breakdown (Max): 600 V
  • Current - Collector (Ic) (Max): 56 A
  • Power - Max: 170 W
  • Current - Collector Pulsed (Icm): 200 A
  • Switching Energy: 200µJ (off)
  • Gate Charge: 95 nC
  • td (on/off) @ 25°C: 18ns/90ns
  • Test Condition: 400V, 30A, 3Ohm, 15V
  • Mounting Type: Through Hole
  • Package/Case: TO-247-3
  • Supplier Device Package: ISOPLUS247™
  • Temperature Range - Operating: -55°C ~ 150°C (TJ)
  • Series: HiPerFAST™
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.29.0095
  • Product Status: Obsolete
