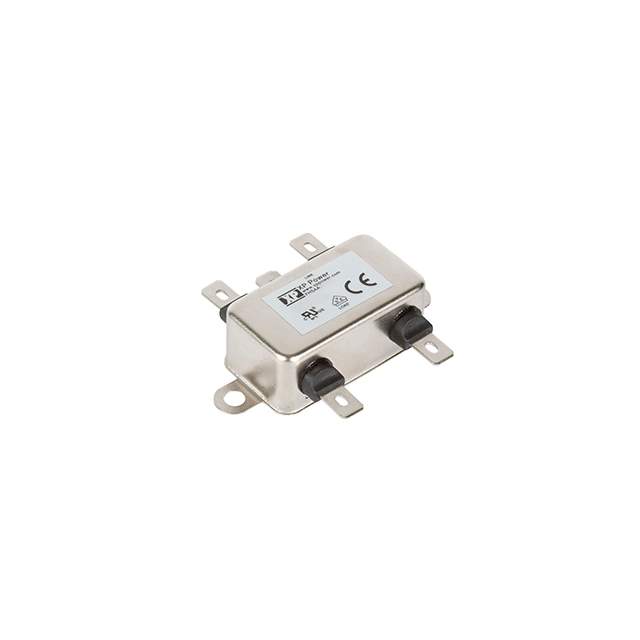

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr XP Power
Package Tray
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 3 A
Frequency - Operating DC ~ 400Hz
Applications ITE
Approval Agency EN, UL
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 1.2mH
Base Product Number FHSAA03
Standard Package 16
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1339564-FHSAA03A1FR
Ultra Librarian 3D Model Ultra Librarian FHSAA03A1FR CAD Model

Description

The power line filter module with the Win Source Part Number 1339564-FHSAA03A1FR is a single-phase filter designed to be used in ITE applications.

  • Win Source Part Number: 1339564-FHSAA03A1FR
  • Filter Type: Power Line Filter Module, Single-Phase
  • Application: ITE
  • Termination Style: Quick Connect
  • Package: Tray
  • Inductance: 1.2mH
  • Current Rating: 3A
  • Voltage Rating: Up to 250V AC
  • Frequency Range: DC to 400Hz
  • Mounting Style: Chassis Mount
  • Operating Temperature: -40°C to 110°C
  • Approvals: EN, UL
