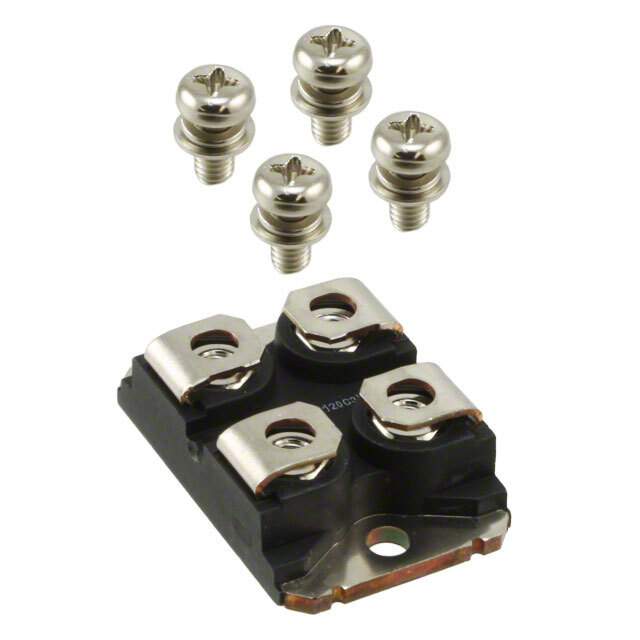

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Series HiPerFAST
Part Status Obsolete(EOL)
IGBT Type PT
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 75A
Power - Max 480W
Vce(on) (Maximum) @ Vge, Ic 2.5V @ 15V, 50A
Current - Collector Cutoff (Maximum) 650μA
Input Capacitance (Cies) @ Vce 4.75nF @ 25V
Input Standard
NTC Thermistor No
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Manufacturer Package SOT-227B
Win Source Part Number 1191206-IXGN60N60C2D1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name IXGN60N60C2D1
Introduction Date June 09, 2004
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian IXGN60N60C2D1 CAD Model

Description

The IXYS IXGN60N60C2D1 is a high power IGBT designed for use in a variety of applications, including motor control, power supplies, and lighting.

  • Collector-emitter voltage: 600V
  • Continuous collector current: 75A
  • On-state voltage: 2.5V @ 15V and 50A
  • Package: SOT-227-4 miniBLOC
  • Mounting: chassis mountable
  • Series: HiPerFAST
  • Status: obsolete
