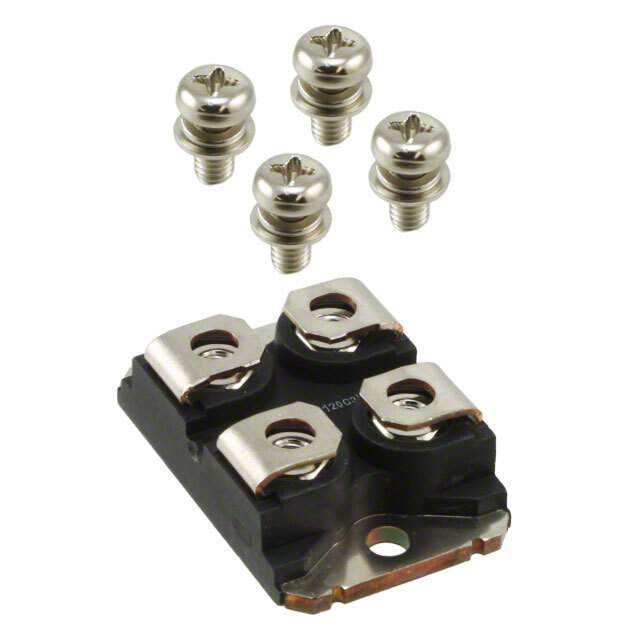

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Status Obsolete
IGBT Type PT
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 200A
Maximum Power 600W
Vce(on) (Maximum) at Vge, Ic 2.1V at 15V, 120A
Current - Collector Cutoff (Maximum) 200μA
Input Capacitance (Cies) at Vce 11nF at 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Family Part Number IXG*200N60
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1191203-IXGN200N60B
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXGN200N60B CAD Model

Description

The IXYS IXGN200N60B is an obsolete electronic component with a medium popularity.

  • Mounting Configuration: Single configuration chassis mount
  • Input: Standard input
  • IGBT Type: PT
  • NTC Thermistor: No NTC thermistor
  • Manufacturer Homepage: www.ixys.com
  • Maximum Power: 600W
  • Voltage Collector Emitter Breakdown: 600V
  • Current Collector Cutoff: 200μA
