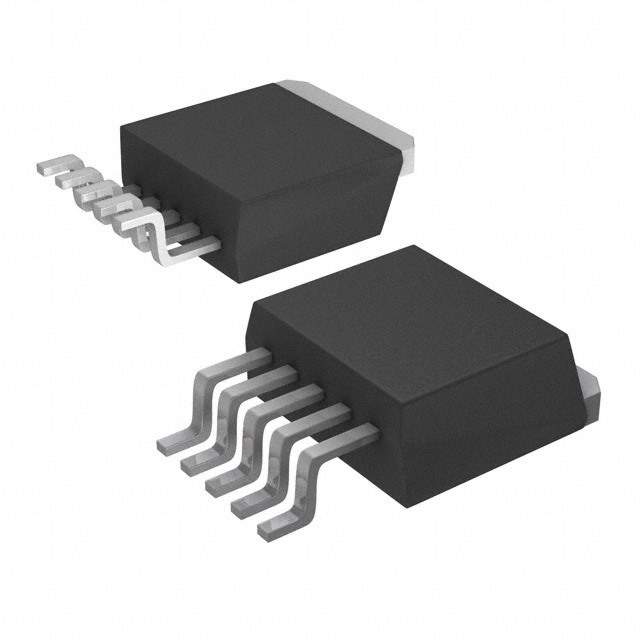

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 35V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 9A, 9A
Input Type Non-Inverting
Rise / Fall Time 22ns, 15ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1191030-IXDN609YI
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXDN609YI CAD Model

Description

The IXYS IXDN609YI is a single channel low-side driver IC for IGBT, N-channel, and P-channel MOSFET gate control.

  • Input Type: non-inverting
  • Logic Voltage Range: 0.8V to 3V
  • Peak Output Current (Source/Sink): 9A
  • Package: TO-263-5
  • Operating Temperature: -55°C to 150°C
  • Applications: integrated circuits
  • Supply Voltage: 4.5V to 35V
  • Rise Time: 22ns
  • Fall Time: 15ns
