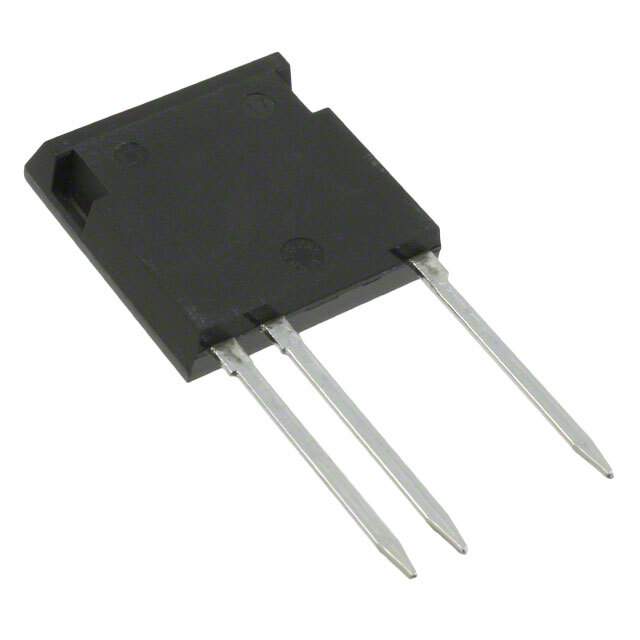

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr IXYS
Series BIMOSFET™
Package Tube
Voltage - Collector Emitter Breakdown (Max) 3600 V
Current - Collector (Ic) (Max) 45 A
Current - Collector Pulsed (Icm) 220 A
Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 20A
Power - Max 230 W
Switching Energy 15.5mJ (on) , 4.3mJ (off)
Input Type Standard
Gate Charge 43 nC
Td (on/off) @ 25°C 18ns/238ns
Test Condition 1500V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr) 1.7 µs
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case i4-Pac™-5 (3 Leads)
Supplier Device Package ISOPLUS i4-PAC™
Base Product Number IXBF20
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
California Prop 65 Warning Information
Win Source Part Number 1349824-IXBF20N360
Ultra Librarian 3D Model Ultra Librarian IXBF20N360 CAD Model

Description

The IXBF20N360 is a single IGBT transistor from the BIMOSFET™ series by IXYS.

  • Package: Tube
  • Standard Package: 25
  • Maximum Power: 230 W
  • Reverse Recovery Time (trr): 1.7 μs
  • IGBT Type: Not Specified
  • Voltage Collector Emitter Breakdown (Max): 3600 V
  • Current Collector Pulsed (Icm): 220 A
  • Gate Charge: 43 nC
  • Test Conditions: 1500V, 20A, 10Ohm, 15V
  • Mounting Type: Through-Hole
  • Package: i4-Pac™-5 (3 Leads)
  • Supplier Device Package: ISOPLUS i4-PAC™
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Maximum Collector Current (Ic): 45 A
  • Maximum Collector-Emitter Voltage (Vce(on)): 3.4V @ 15V, 20A
