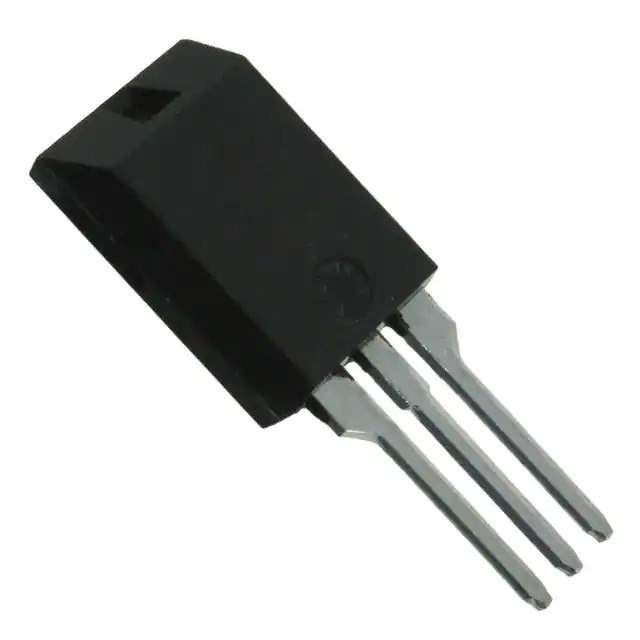

DSEC59-06BC Real Image
Same model may have multiple batches, images only for reference.

DSEC59-06BC

Part No DSEC59-06BC
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY 600V 30A ISOPLUS220
Datasheet
DSEC59-06BC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Series HiPerFRED™
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 2.51 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 250 µA @ 600 V
Operating Temperature - Junction -40°C ~ 175°C
Mounting Type Through Hole
Package / Case ISOPLUS220™
Supplier Device Package ISOPLUS220™
Base Product Number DSEC59
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 587124-DSEC59-06BC
Ultra Librarian 3D Model Ultra Librarian DSEC59-06BC CAD Model

Description

The 587124-DSEC59-06BC is a diode array from the HiPerFRED™ series by IXYS.

  • Application: Rectification
  • Recovery Time: Less than 500ns
  • Average Rectified Current (per diode): Up to 30A
  • Maximum Reverse Voltage: 600V
  • Forward Voltage: 2.51V @ 30A
  • Reverse Leakage Current: 250µA @ 600V
  • Mounting Type: Through-Hole
  • Package: ISOPLUS220™
  • Operating Temperature Range: -40°C to 175°C
