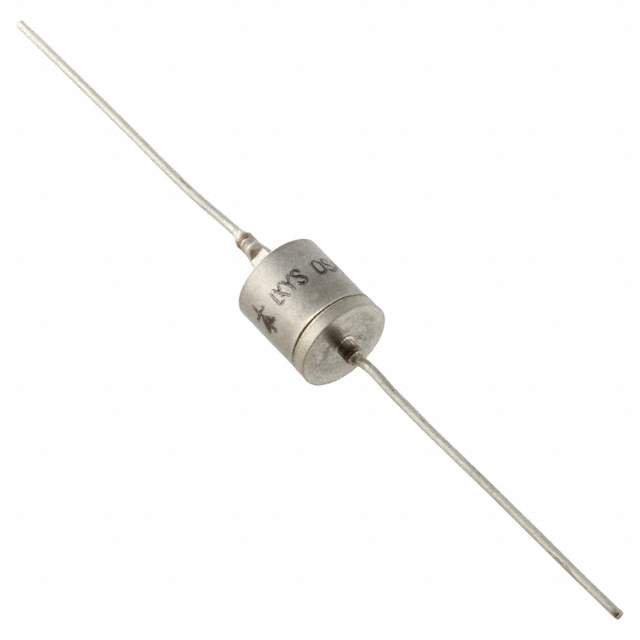

DSA2-12A Real Image
Same model may have multiple batches, images only for reference.

DSA2-12A

Part No DSA2-12A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Single
Description DIODE AVALANCHE 1200V 3.6A AXIAL  /  Diode Avalanche 1200 V 3.6A Through Hole Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr IXYS
Package Bulk
Product Status Obsolete
Diode Type Avalanche
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 3.6A
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 7 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 mA @ 1200 V
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Operating Temperature - Junction -40°C ~ 180°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names DSA212A
Standard Package 100
Win Source Part Number 1199487-DSA2-12A
Ultra Librarian 3D Model Ultra Librarian DSA2-12A CAD Model

Description

The DSA2-12A is an obsolete avalanche diode.

  • Win Source Part Number: 1199487-DSA2-12A
  • Category: discrete semiconductor products
  • Standard Package: 100
  • Voltage - DC Reverse (Vr) (Max): 1200 V
  • Current - Average Rectified (Io): 3.6A
  • Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 7 A
  • Current - Reverse Leakage @ Vr: 2 mA @ 1200 V
