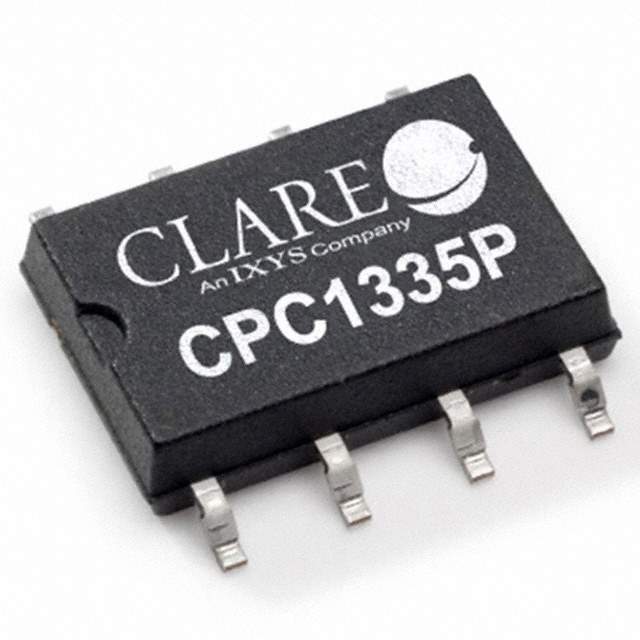

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS Integrated Circuits Division
Series CPC, OptoMOS
Packaging Reel package
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 16 Ohm
Load Current 150mA
Voltage - Input 1.2VDC
Voltage - Load 0 ~ 70 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-Flatpack
Relay Type Relay
Win Source Part Number 771728-CPC1317PTR
Popularity Medium
Supply and Demand Status Limited
Family Name CPC1317
Introduction Date February 08, 2008
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CPC1317PTR CAD Model

Description

The IXYS Integrated Circuits Division CPC1317PTR is a relay that is part of the CPC series of optoMOS relays. The relay has a load current of 150mA and a voltage load of 0 ~ 70 V.

  • Load Current: 150mA
  • Voltage Load: 0 ~ 70 V
  • Circuit: SPST-NO
  • Termination Style: Gull-wing
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Package: Reel
  • Mounting: SMD
