Same model may have multiple batches, images only for reference.

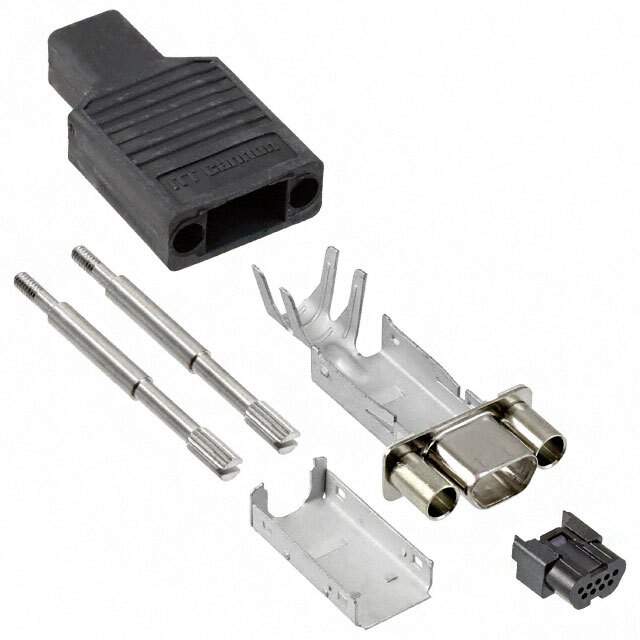

MDSM-9SC-Z11-VS1 Real Image
Same model may have multiple batches, images only for reference.

MDSM-9SC-Z11-VS1

Part No MDSM-9SC-Z11-VS1
Manufacturer ITT Cannon, LLC
Catalog D - Sub Connectors
Description CONN MICRO-D HSG RCP 9P 5PC KIT / Receptacle for Female Contacts Housing D-Type, Micro-D Connector 9 Position
Datasheet
MDSM-9SC-Z11-VS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Housings
Mfr ITT Cannon, LLC
Series MDSM
Connector Style D-Type, Micro-D
Connector Type Receptacle for Female Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Cable Side, Male Jackscrew (2-56)
Features Shielded
Shell Material, Finish Steel, Tin-Nickel Plated
Temperature Range - Operating -55°C ~ 125°C
Mating Cycles 500
Dielectric Material Thermoplastic
Color Black
Note Contacts Not Included
Base Product Number MDSM
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Names MDSM-9SC-Z11-VS1PG-ND,1003-1307,1216611086,MDSM-9SC-Z11-VS1PG,121661-1086
Standard Package 100
Win Source Part Number 1014126-MDSM-9SC-Z11-VS1
Ultra Librarian 3D Model Ultra Librarian MDSM-9SC-Z11-VS1 CAD Model

Description

ITT Cannon, LLC presents the MDSM-9SC-Z11-VS1 D-sub connector housing.

  • Positions: 9
  • Shielded: Yes
  • Contact Gender: Receptacle (Female)
  • Contact Type: Signal
  • Connector Type: Micro-D
  • Shell Size/Layout: 0.050 Pitch x 0.100 Row to Row
