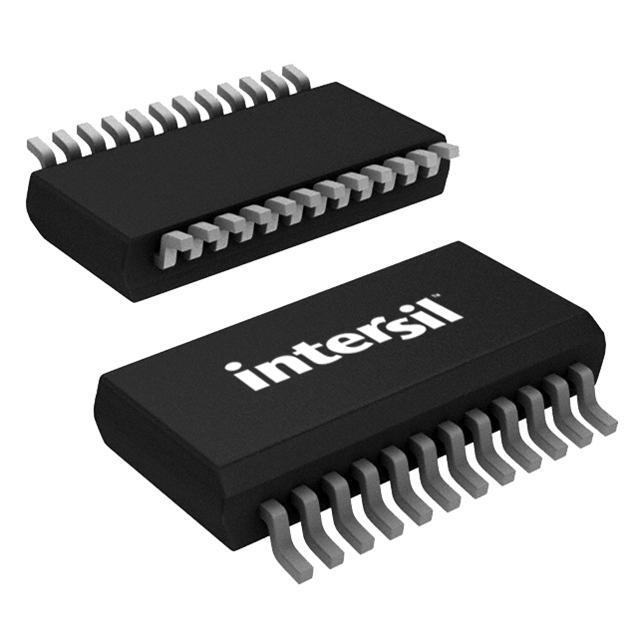

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Intersil
Main Purpose DC/DC, Step Down with LDO
Outputs and Type 3, Non-Isolated
Voltage - Output 1.8V, 3.3V, 5V
Output Current 3A, 3A, 300mA
Voltage - Input 6V
Regulator Topology Buck
Frequency - Switching 1.4MHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part ISL6442
Win Source Part Number 794507-ISL6442EVAL1Z
Popularity Medium
Supply and Demand Status Limited
Family Name ISL6442
Introduction Date July 11, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ISL6442EVAL1Z CAD Model

Description

The ISL6442EVAL1Z from Intersil is a development board designed for use with the ISL6442 DC/DC step-down regulator.

  • Output Voltage: 1.8V, 3.3V, 5V
  • Input Voltage: 6V
  • Board Type: fully populated
  • Outputs: 3, non-isolated
  • Regulator Topology: buck
  • Frequency Switching: 1.4MHz
  • Supplied Contents: board(s)
  • Output Current: 3A, 3A, 300mA
  • Popularity: medium
  • Supply and Demand Status: limited
