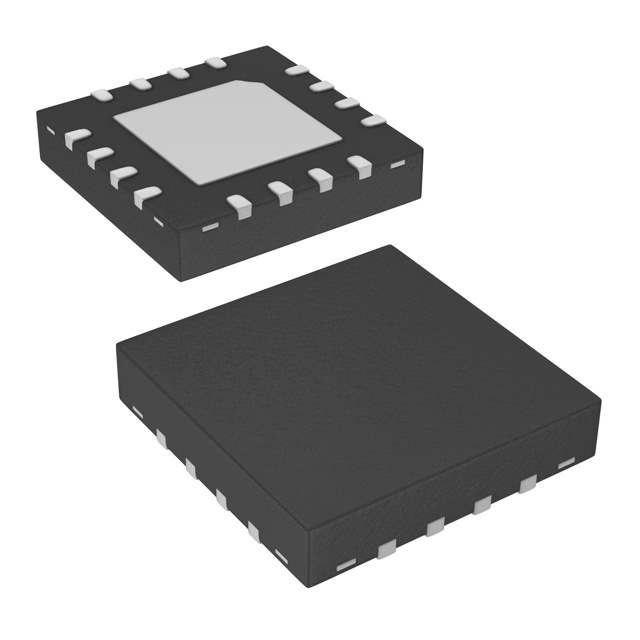

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 4
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 15V
Rise and Fall Time 20ns, 20ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 16-QFN-EP (5x5)
Win Source Part Number 133601-HIP6602BCR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HIP6602BCR CAD Model

Description

The Intersil HIP6602BCR is a half-bridge driver IC with four synchronous channels.

  • Input Type: Non-inverting
  • Driven Configuration: Half-bridge
  • Gate Type: N-channel MOSFET
  • High Side Voltage Max: 15V
  • Package Type: 16-QFN-EP (5x5)
  • Operating Temperature: 0°C to 125°C (TJ)
  • Supply Voltage: 10.8V to 13.2V
  • Rise and Fall Time: 20ns, 20ns
