The LMG1210RVRR is a state-of-the-art half-bridge driver designed by Texas Instruments, specifically engineered for high-performance power conversion applications. This driver is optimized for use with GaN FETs, making it an ideal choice for systems that require fast switching and high efficiency, such as DC/DC converters, motor drives, and Class-D audio amplifiers.

Featuring an advanced high-side and low-side driver architecture, the LMG1210RVRR is capable of delivering exceptionally fast propagation delays of typically 25 ns, ensuring precise timing control and improved overall system performance. Its peak source and sink currents are rated at 1.5 A and 2.5 A respectively, enabling it to drive power transistors effectively even under demanding conditions.

Key Features:

• Wide Supply Voltage Range: Operates from 5 V to 80 V, accommodating a broad spectrum of power stages.
• High Switching Frequency: Supports up to 50 MHz switching frequencies, making it suitable for high-speed applications.
• Integrated Dead-Time Control: Reduces the risk of shoot-through, enhancing reliability and efficiency.
• Adjustable Dead-Time: Allows for optimization of the switching transitions to match specific application requirements.
• Robust Design: Features under-voltage lockout, over-temperature protection, and common-mode transient immunity for increased system safety and reliability.

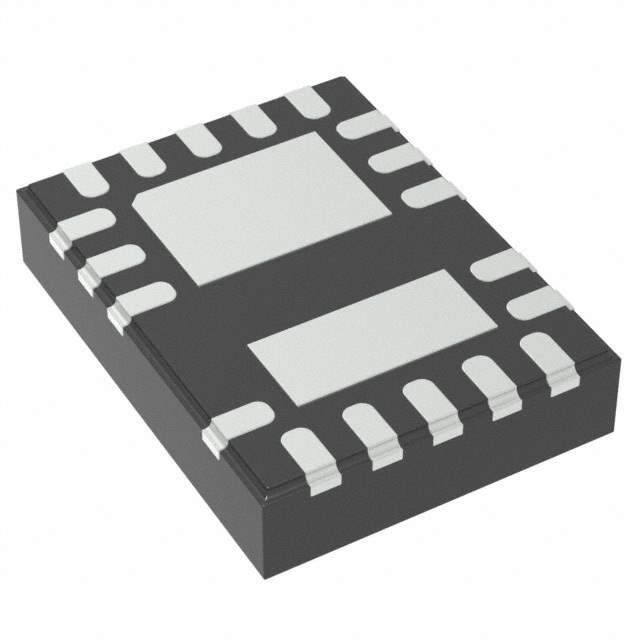

The LMG1210RVRR's package is a small, thermally enhanced VQFN package that reduces the footprint on the PCB and simplifies the thermal management of the device. With its leading-edge capabilities, the LMG1210RVRR from Texas Instruments stands out as a superior choice for engineers and designers looking to push the boundaries of power density, efficiency, and performance in their next-generation power systems.

Whether you are developing cutting-edge power supplies or innovative motor control solutions, the LMG1210RVRR provides the advanced features and robust design necessary to achieve a competitive edge in today's fast-paced market.
