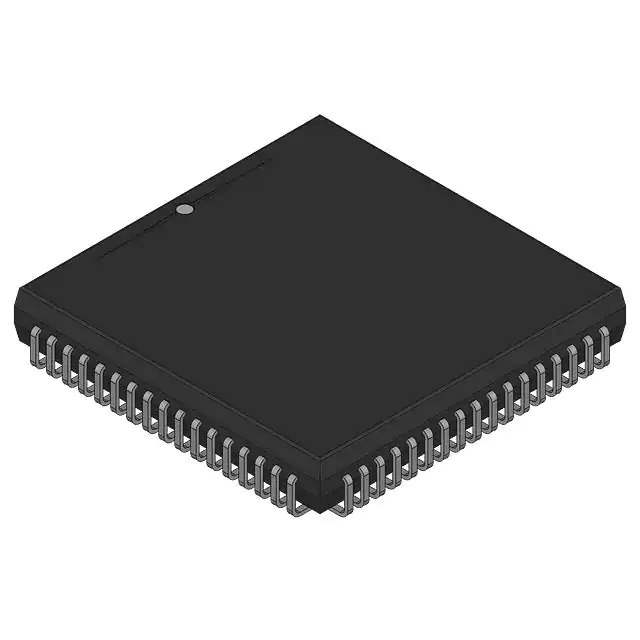

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intel
Series i186
Package Bag
Product Status Obsolete
Core Processor 80C186
Number of Cores/Bus Width 1 Core, 16-Bit
Speed 25MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 80-BQFP
Supplier Device Package 80-PQFP (14x20)
Standard Package 50 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 836445-S80C186EB25
Ultra Librarian 3D Model Ultra Librarian S80C186EB25 CAD Model

Description

The 836445-S80C186EB25 is an integrated circuit microprocessor from the i186 series by Intel.

  • Core Processor: features a 80C186 core processor with 1 core
  • Bus Width: 16 bits
  • Processor Speed: operates @ a speed of 25MHz, providing fast and efficient performance.
  • Voltage: With a voltage of 5.0V for I/O, it ensures reliable and stable operation.
  • Application: designed for embedded applications, making it suitable for a wide range of electronic devices.
  • RAM Controllers: supports DRAM RAM controllers, allowing for efficient memory management.
  • Package: 80-BQFP, which is surface mountable for easy installation.
  • Temperature Range: 0°C to 70°C, it can operate in various environments.
  • Status: an obsolete product, but it may still be available in the market @ a discounted price.
