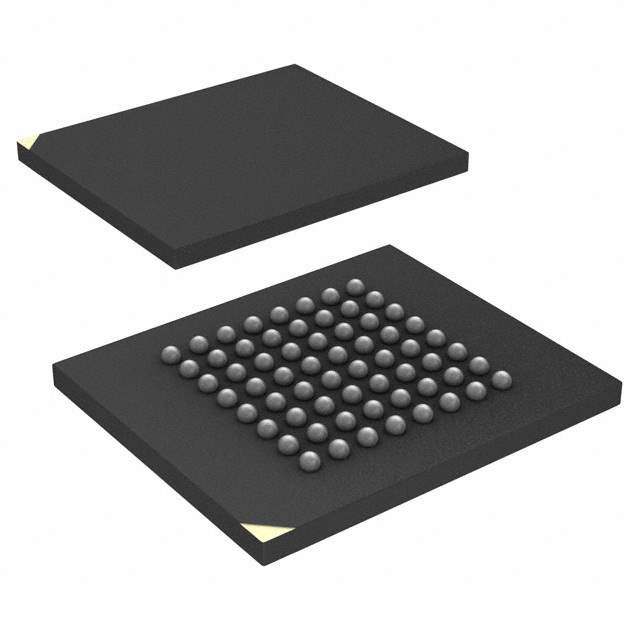

The PC28F512M29AWH is a 512-Megabit (Mb) Parallel Flash Memory device manufactured by Intel. It is designed for high-density, non-volatile storage in embedded systems and other applications requiring fast access times and reliable data retention. This memory device utilizes a parallel interface for efficient data transfer, making it suitable for demanding performance requirements.

Applications

• Embedded Systems for Firmware Storage
• Networking Equipment (e.g., routers, switches)
• Industrial Automation Systems
• Medical Devices
• Automotive Electronics (e.g., navigation systems)

Features

• High Density: 512Mb storage capacity.
• Parallel Interface: Enables fast data transfer rates.
• Non-Volatile: Retains data even when power is removed.
• Fast Read/Write Speeds: Provides quick access to stored information.
• Low Power Consumption: Suitable for battery-powered applications and energy-efficient systems.
• Sector Protection: Prevents accidental data corruption or unauthorized access.
• Advanced Packaging Options: Available in various packages to suit different board layouts.

Benefits

• Improved System Performance: Fast read/write speeds enhance overall system responsiveness.
• Reliable Data Storage: Non-volatile memory ensures data integrity in power loss scenarios.
• Increased Storage Capacity: High density allows for storing large amounts of data in a compact form factor.
• Reduced Power Consumption: Low power design contributes to longer battery life and energy savings.
• Enhanced Data Security: Sector protection features safeguard against data corruption and unauthorized access.

Additional Details

The PC28F512M29AWH operates within a specific voltage range (typically 2.7V to 3.6V) and exhibits defined timing characteristics for read, write, and erase operations. Refer to the device datasheet for precise electrical specifications, timing diagrams, and package details. This flash memory device incorporates features like sector locking and password protection to enhance data security and prevent unintended data modifications. It is available in different package types (e.g., TSOP, BGA) to accommodate various board layouts and assembly processes. The PC28F512M29AWH is commonly employed in applications where firmware, operating systems, or critical data must be stored securely and accessed rapidly. Its robust design ensures dependable performance in demanding environments, making it well-suited for industrial and automotive applications. Careful consideration should be given to operating temperature range, endurance cycles, and data retention requirements when selecting this device for a particular use case.
