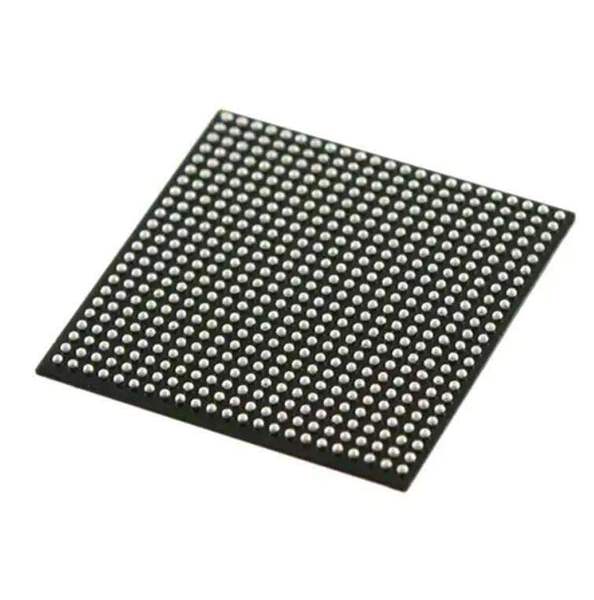

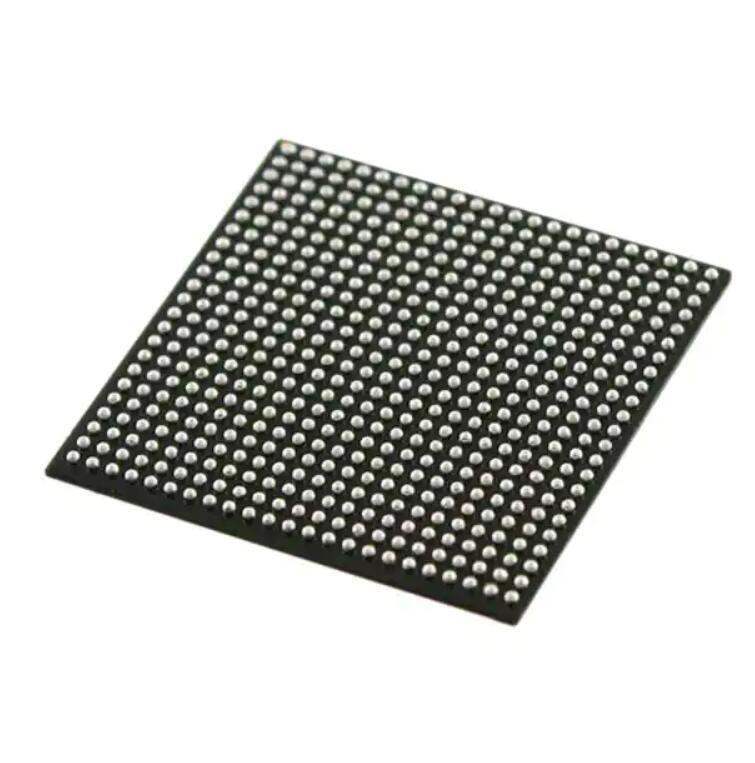

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1196645-EP4CE55F23C7
Win Source Part Number Cross
Manufacturer Intel
Category Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array)
Series Cyclone® IV E
Package Tray
Product Status Active
Number of LABs/CLBs 3491
Total RAM Bits 2396160
Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian EP4CE55F23C7 CAD Model

Description

The Cyclone® IV E is an embedded FPGA (Field Programmable Gate Array) from Intel.

  • Package: Tray
  • Number of LABs/CLBs: 3491
  • Number of Logic Elements/Cells: 55856
  • Voltage - Supply: 1.15V to 1.25V
  • Mounting Type: Surface Mount
  • RAM Bits: 2396160
