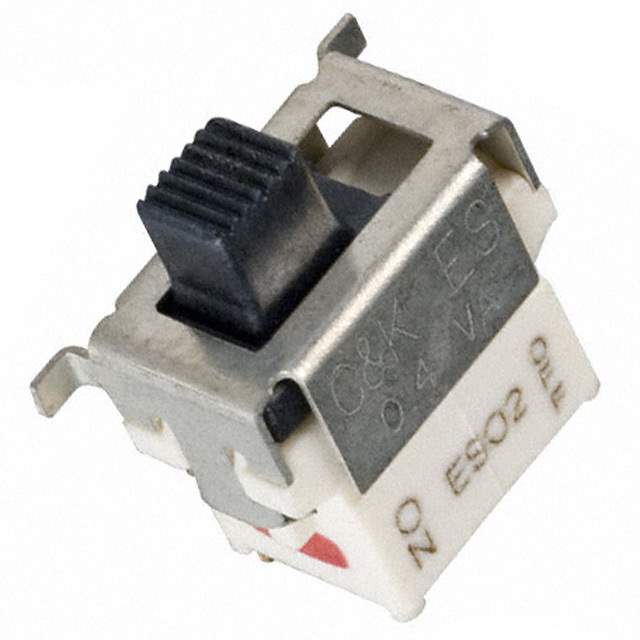

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series ES
Package Tape & Reel
Circuit SPST
Contact Timing Not Specified
Switch Function On-Off
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard
Actuator Length 3.07mm
Contact Material Bronze
Contact Finish Gold
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Features Epoxy Sealed Terminals, IP57
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Liquid Crystal Polymer (LCP)
Switch Travel 2.29mm
Mechanical Life 40,000 Cycles
Electrical Life 40,000 Cycles
Base Product Number ES02M
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9050
Other Names CKN1813CT,CKN1813DKR,*ES02MSABE,Q8111124,CKN1813TR,2266-ES02MSABE
Standard Package 300
Win Source Part Number 1057756-ES02MSABE
Ultra Librarian 3D Model Ultra Librarian ES02MSABE CAD Model

Description

The C&K ES02MSABE is a slide switch with a circuit of SPST and a switch function of On-Off.

  • Circuit: SPST
  • Switch Function: On-Off
  • Contact Material: Bronze
  • Contact Finish: Gold
  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA (AC/DC)
  • Actuator Type: Standard
  • Actuator Length: 3.07mm
  • Switch Travel: 2.29mm
  • Electrical Life: 40,000 cycles
  • Mechanical Life: 40,000 cycles
  • Mounting Type: Surface Mount, Right Angle
  • Termination Style: Gull Wing
  • Seal: Epoxy Sealed with IP57
  • Approval: REACH
  • Standard Package: 300
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • HTSUS: 8536.50.9050
