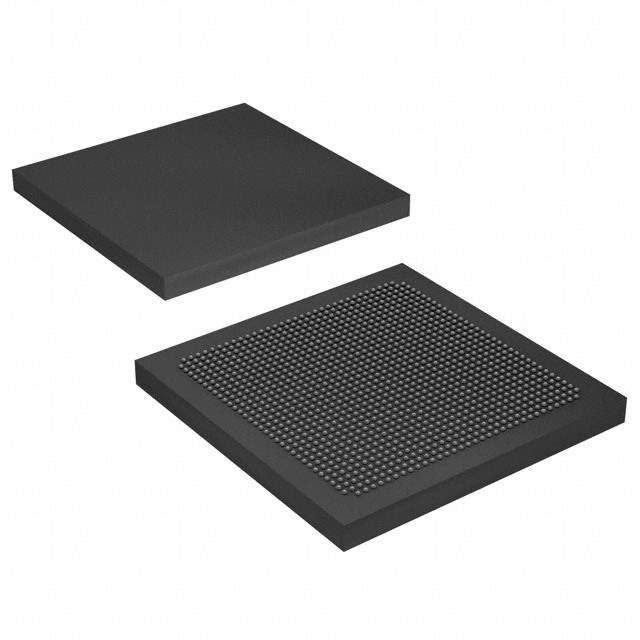

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria II GX
Package Tray
Number of LABs/CLBs 10260
Number of Logic Elements/Cells 244188
Total RAM Bits 12038144
Number of I/O 612
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA (35x35)
Base Product Number EP2AGX260
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Standard Package 24
Win Source Part Number 1005157-EP2AGX260FF35C6G
Ultra Librarian 3D Model Ultra Librarian EP2AGX260FF35C6G CAD Model

Description

The 1005157-EP2AGX260FF35C6G is an embedded FPGA that is designed for use in a variety of applications.

  • Series: Arria II GX
  • LABs/CLBs: 10260
  • Logic Elements/Cells: 244188
  • I/Os: 612
  • Total RAM Bits: 12038144
  • Mounting: SMD (SMT)
  • Package: 1152-BBGA, FCBGA
