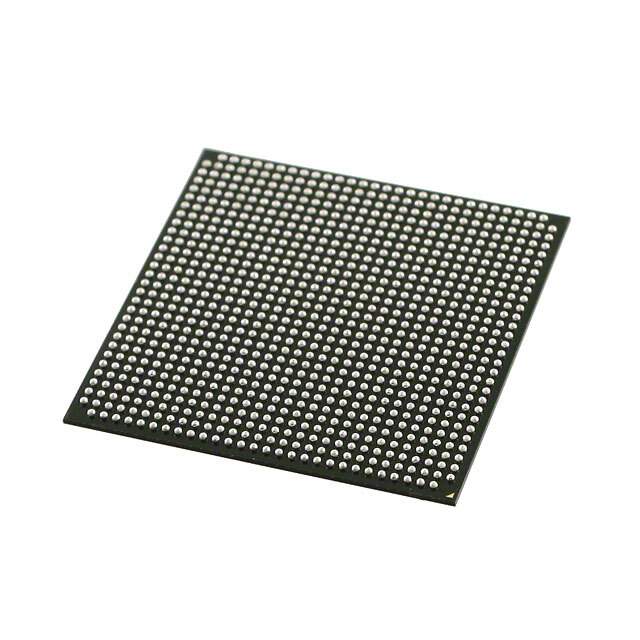

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Cyclone® V ST
Package Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 64KB
Peripherals DMA, POR, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 800MHz
Primary Attributes FPGA - 85K Logic Elements
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 896-BGA
Supplier Device Package 896-FBGA (31x31)
Number of I/O MCU - 181, FPGA - 288
Base Product Number 5CSTFD5
Standard Package 27
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1350732-5CSTFD5D5F31I7N
Ultra Librarian 3D Model Ultra Librarian 5CSTFD5D5F31I7N CAD Model

Description

The Intel Cyclone® V ST series from Intel is a system on chip (SoC) with dual ARM® Cortex®-A9 MPCore™ with CoreSight™ processor that operates at a speed of 800MHz.

  • Applications: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Number of I/O: 469
  • MCU I/O: 181
  • FPGA I/O: 288
  • Peripherals: DMA, POR, WDT
  • Architecture: MCU, FPGA
  • FPGA Logic Elements: 85K
  • Package / Case: 896-BGA
  • Supplier Device Package: 896-FBGA (31x31)
  • Standard Package: 27
  • Operating Temperature: -40°C to 100°C
  • MSL: Level 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
