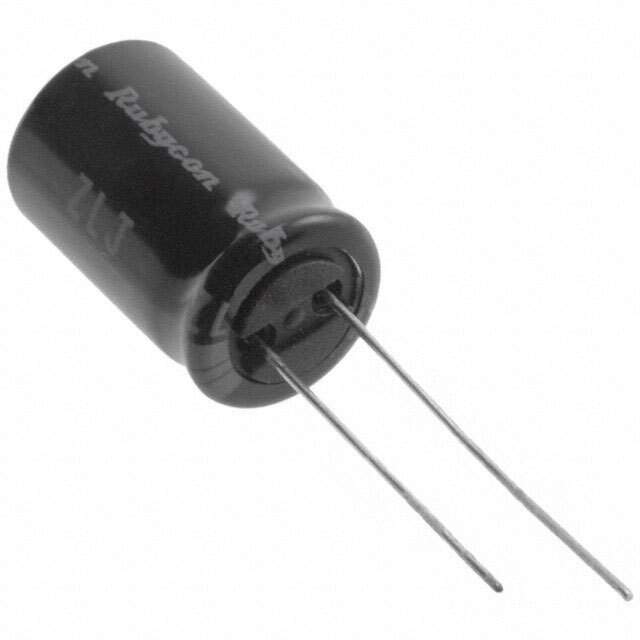

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 659.4 mA @ 120 Hz
Ripple Current @ High Frequency 1.57 A @ 100 kHz
Impedance 60 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 973939-63YXJ330M12.5X20
Ultra Librarian 3D Model Ultra Librarian 63YXJ330M12.5X20 CAD Model

Description

The YXJ series from Rubycon is a radial, can type capacitor with a capacitance of 330μF and a voltage rating of 63V DC.

  • Capacitance: 330μF
  • Voltage Rating: 63V DC
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Impedance: 60 mOhm
  • Ripple Current @ Low Frequency: 659.4mA @ 120Hz
  • Ripple Current @ High Frequency: 1.57A @ 100kHz
  • Polarized: Yes
  • Lifespan: 10000 hours @ 105°C
  • Series: YXJ
  • Application: General Purpose
  • Manufactured In: Japan
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
