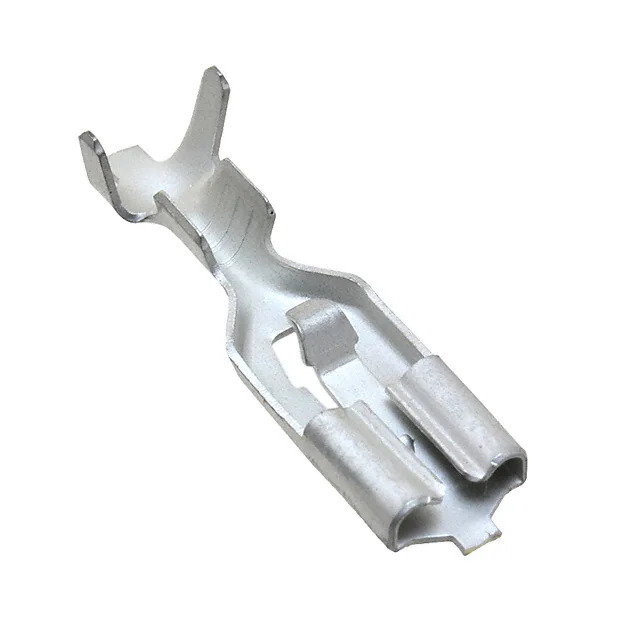

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Mark II
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.755" (19.18mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 63313
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362840-63313-1
Ultra Librarian 3D Model Ultra Librarian 63313-1 CAD Model

Description

The 1362840-63313-1 is a quick connect terminal from TE Connectivity AMP Connectors.

  • Series: Mark II
  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 16-20 AWG
  • Insulation: Non-Insulated
  • Overall Length: 0.755" (19.18mm)
  • Termination: Crimp
  • Contact Material: Brass
  • Terminal Type: Standard
  • Gender: Female
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter Range: 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
  • Product Status: Active
