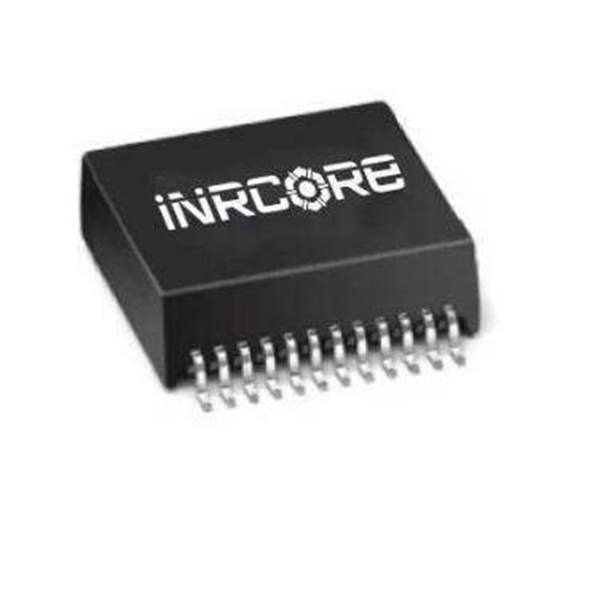

1000B-5002XNL iNRCORE, LLC
Same model may have multiple batches, images only for reference.

1000B-5002XNL

Part No 1000B-5002XNL
Manufacturer iNRCORE, LLC
Catalog Pulse Transformers
Description MDL SIN 1GD 1:1 SMT TU NPB
Datasheet
1000B-5002XNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310640-1000B-5002XNL
Manufacturer iNRCORE, LLC
Category Transformers > Pulse Transformers
Packaging Tube
Part Status Active
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.690" L x 0.480" W (17.53mm x 12.19mm)
Height - Seated (Max) 0.235" (5.97mm)
Ultra Librarian 3D Model Ultra Librarian 1000B-5002XNL CAD Model

Description

● Compliant with IEEE 802.3 standards
● 350µH OCL with 8mA DC bias at extended temperatures
● Dielectric Withstanding Voltage (DWV): 1500 Vrms
● Storage Temperature: -55°C to +125°C
● Operating Temperature:
1000B-5001/5002/5003: -40°C to +85°C
1000B-5001X/5002X/5003X: -55°C to +125°C
● Epoxy Encapsulated Package
● Lead Finish: Sn63/Pb37
● Moisture Sensitivity Level: 3
