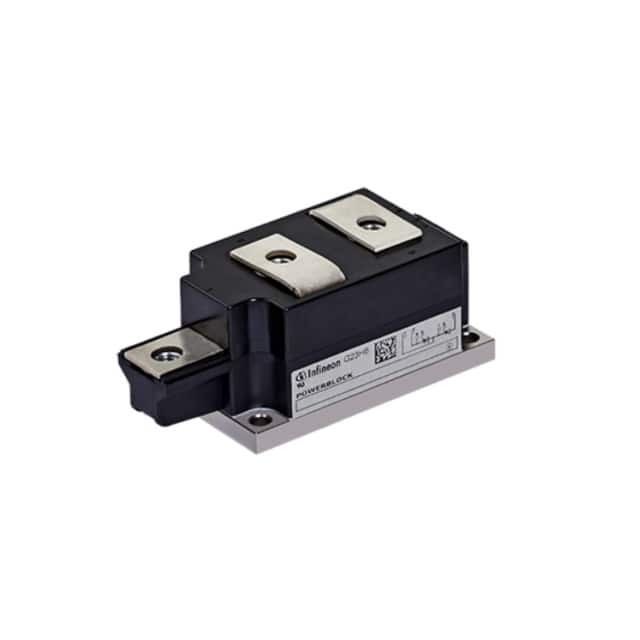

TT240N16SOFHPSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Tray
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 240 A
Current - On State (It (RMS)) (Max) 275 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 145 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 5200A @ 50Hz
Current - Hold (Ih) (Max) 200 mA
Temperature Range - Operating 130°C (TC)
Mounting Type Chassis Mount
Package / Case Module
Base Product Number TT240N16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names SP002256798
Standard Package 8
Win Source Part Number 1101573-TT240N16SOFHPSA1
Ultra Librarian 3D Model Ultra Librarian TT240N16SOFHPSA1 CAD Model

Description

The TT240N16SOFHPSA1 is a thyristor - SCR module that has a voltage off state of 1.6 kV and a voltage gate trigger of 2.5 V.

  • Voltage Off State: 1.6 kV
  • Voltage Gate Trigger: 2.5 V
  • Current Hold (Max): 200 mA
  • Current On State (Max): 240 A
  • SCR Connection: Series
  • SCRs and Diodes: Two SCRs and Diodes
  • Mounting Type: Chassis Mount
  • Operating Temperature: 130 degrees Celsius
