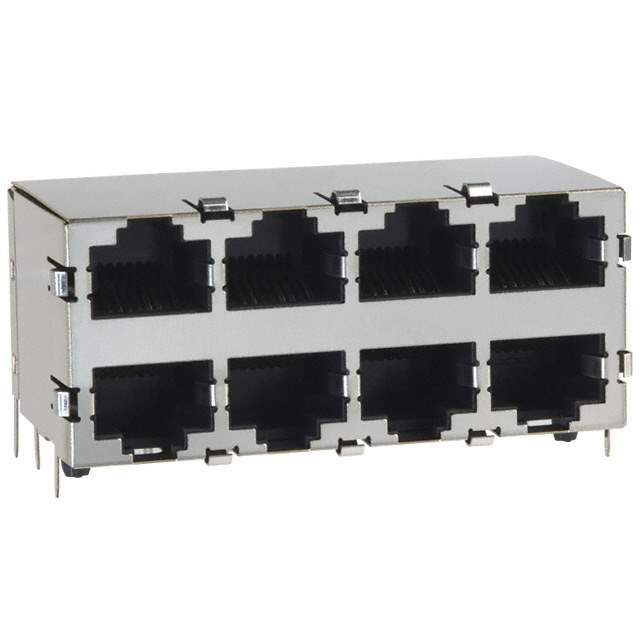

5569262-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 8
Number of Rows 2
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 1006125-5569262-1
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian 5569262-1 CAD Model

Description

The 5569262-1 from TE Connectivity AMP Connectors is a jack connector that has eight ports and eight positions/contacts.

  • Angle: 90° angle (right)
  • Mounting: through the hole
  • Cat5 Compliant: yes
  • Gold Contact Finish Thickness: 50μin (1.27μm)
  • Housing Material: polycyclohexylenedimethylene terephthalate (PCT), polyester
  • Popularity: medium
  • Suitable for: use in computers and computer peripherals, communications and networking, consumer electronics, and industrial applications
