Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Not For New Designs
Applications DC Motors, General Purpose
Load Type Inductive
Technology DMOS
Rds On (Typ) 800 mOhm LS, 800 mOhm HS
Supply Voltage - Operating 3 V to 5.5 V
Voltage - Load 7 V to 18 V
Temperature Range - Operating -40°C to 150°C (TJ)
Fault Protection Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting SMD (SMT)
Case / Package PG-SSOP-24-4
Win Source Part Number 088748-TLE84106EL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE84106EL CAD Model

Description

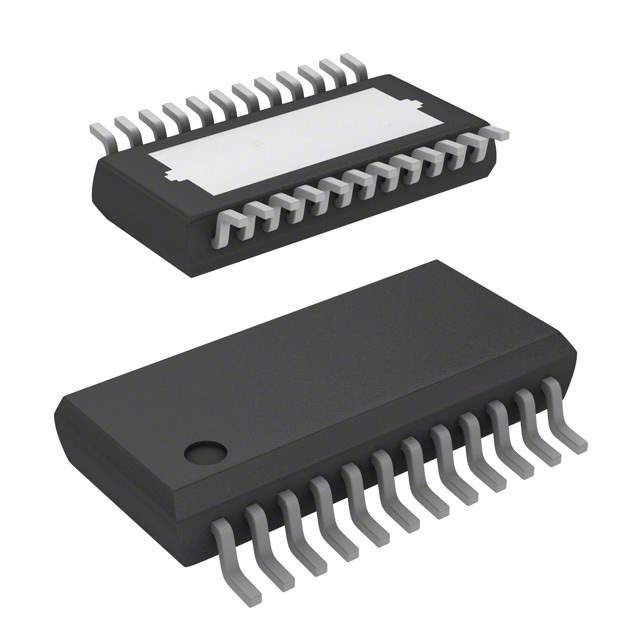

The Infineon Technologies TLE84106EL is a DMOS technology integrated circuit designed for use in DC motors and general purpose applications.

  • Fault Protection: Open load detect, over temperature, short circuit, and UVLO
  • Load Voltage Range: 7V to 18V
  • Supply Voltage Range: 3V to 5.5V
  • Case/Package: PG-SSOP-24-4
  • Rds On (Typ): 800 mOhm LS and 800 mOhm HS
  • Status: Not for new designs
  • Popularity: High
  • Supply and Demand Status: Balance
