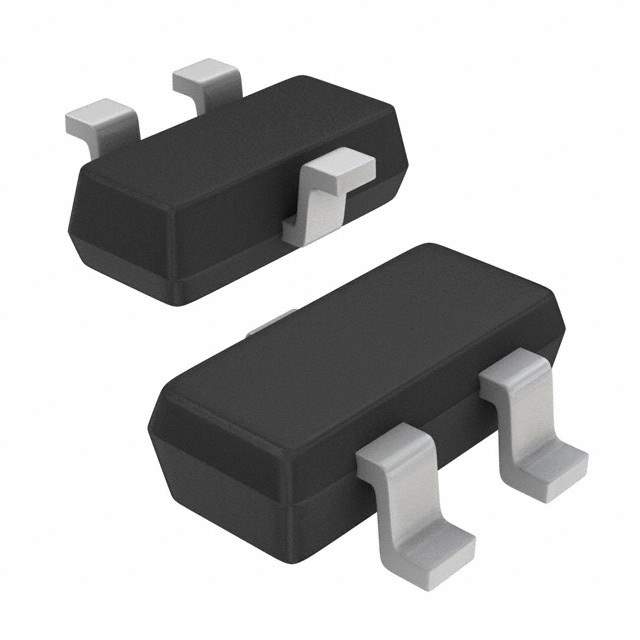

TLE49643MXTSA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49643MXTSA1

Part No TLE49643MXTSA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAG SWITCH UNIPOLAR SOT23-3 / Digital Switch Unipolar Switch Open Drain Hall Effect PG-SOT23-3-15
Datasheet
TLE49643MXTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 16.6mT Trip, 6.1mT Release
Test Condition 25°C
Voltage - Supply 3V ~ 32V
Current - Supply (Max) 2.5mA
Current - Output (Max) 25mA
Output Type Open Drain
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 170°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-SOT23-3-15
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number TLE49643
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLE49643MXTSA1DKR,2156-TLE49643MXTSA1,TLE49643MXTSA1TR,IFEINFTLE49643MXTSA1,TLE49643MXTSA1CT,SP001013860
Standard Package 3,000
Win Source Part Number 966547-TLE49643MXTSA1
Ultra Librarian 3D Model Ultra Librarian TLE49643MXTSA1 CAD Model

Description

The Infineon Technologies TLE49643MXTSA1 is a magnetic sensor with solid-state switch function and PG-SOT23-3-15 package.

  • Sensing Range: 16.6mT trip and 6.1mT release
  • Voltage Supply Range: 3V to 32V
  • Temperature Compensated: temperature compensated
  • Maximum Output Current: 25mA
  • Maximum Supply Current: 2.5mA
  • Status: active
  • Popularity: medium
  • MSL Level: unlimited
