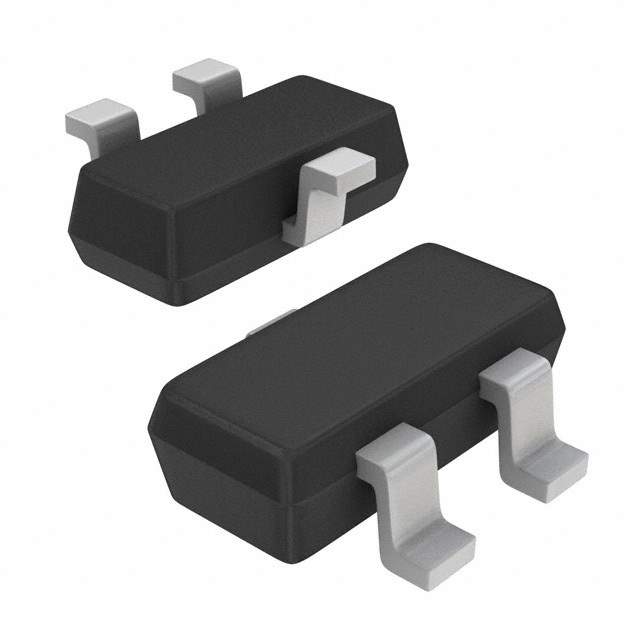

TLE49642MXTSA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49642MXTSA1

Part No TLE49642MXTSA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH UNIPOLAR SOT23-3 / Digital Switch Unipolar Switch Open Drain Hall Effect PG-SOT23-3-15
Datasheet
TLE49642MXTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 36mT Trip, 15.9mT Release
Test Condition 25°C
Voltage - Supply 3V ~ 32V
Current - Supply (Max) 2.5mA
Current - Output (Max) 25mA
Output Type Open Drain
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 170°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-SOT23-3-15
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number TLE49642
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLE49642MXTSA1CT,TLE49642MXTSA1-ND,TLE49642MXTSA1TR,SP000923330,TLE49642MXTSA1DKR
Standard Package 3,000
Win Source Part Number 1026447-TLE49642MXTSA1
Ultra Librarian 3D Model Ultra Librarian TLE49642MXTSA1 CAD Model

Description

The TLE49642MXTSA1 is a temperature compensated unipolar switch magnetic sensor.

  • Application: Automotive
  • AEC-Q100 Qualified: Yes
  • Technology: Hall Effect
  • Output Type: Open Drain
  • Supply Voltage: 3V to 32V
  • Supply Current (Max): 2.5mA
  • Sensing Range: 36mT Trip, 15.9mT Release
  • Polarization: South Pole
  • Package Type: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: PG-SOT23-3-15
  • Suitable for: Applications where temperature compensation is required
