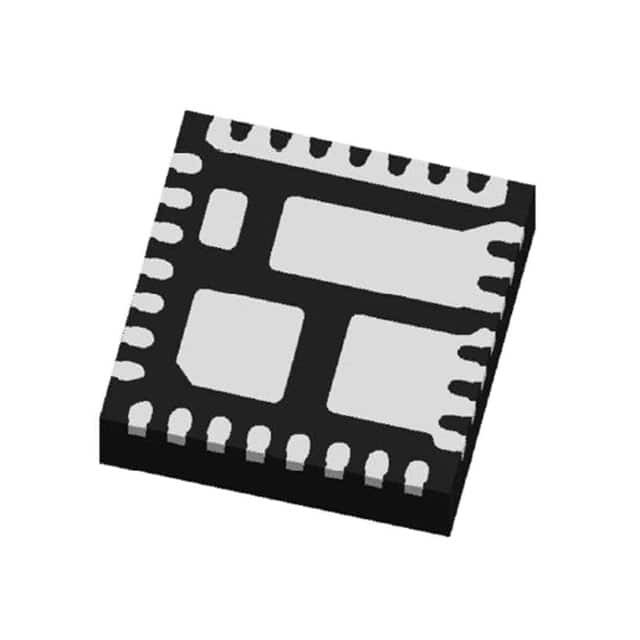

Same model may have multiple batches, images only for reference.
TDA21242 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TDA21242

Part No TDA21242
Manufacturer Infineon Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description 1MHz Step-down type 25A IQFN-30-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package IQFN-30-EP(4x4)
Operating Temperature -40℃~+125℃
Number of Outputs 1
Frequency - Switching 1MHz
Function Step-down type
Features Light load efficient mode;Operating status indication;Overcurrent Protection
Topology Buck
Operating Voltage 4.5V~16V
Switch Tube (Built-In/External) Built-in
Output Current 25A
Quiescent Current 840uA
Ultra Librarian 3D Model Ultra Librarian TDA21242 CAD Model
