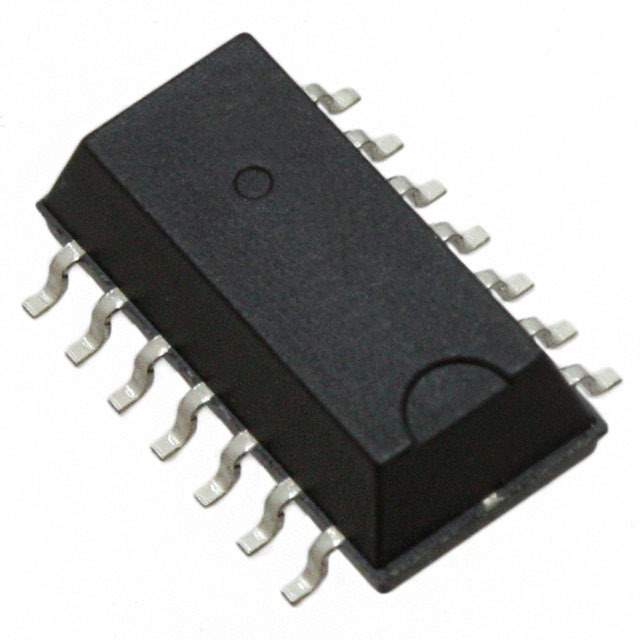

The Bourns R3762 is a precision resistor network designed for applications requiring high accuracy and stability. This network integrates multiple resistors into a single package, which saves board space and simplifies assembly. The tight tolerance and low temperature coefficient of these resistors ensure consistent performance over a wide range of operating conditions. The R3762 offers enhanced circuit performance due to the close matching and tracking characteristics of the integrated resistors.

Applications

• Precision Voltage Dividers: Used to create accurate voltage dividers in test and measurement equipment.
• Operational Amplifier Circuits: Provides stable and precise gain settings in amplifier feedback loops.
• Current Sensing Applications: Allows for accurate current measurement in power supplies and motor control circuits.
• Bridge Circuits: Employed in sensor interfaces and Wheatstone bridge configurations for precise measurement.
• Analog-to-Digital Converters (ADCs): Improves the accuracy and linearity of ADC circuits.

Features

• Multiple Resistors in One Package: Reduces component count and simplifies board layout.
• Tight Resistance Tolerance: Ensures accurate and consistent resistance values.
• Low Temperature Coefficient: Minimizes resistance changes due to temperature variations.
• High Stability: Provides long-term reliability and consistent performance.
• RoHS Compliant: Complies with environmental regulations for hazardous substances.

Benefits

• Improved Circuit Accuracy: Tight tolerances and matched resistance values enhance overall circuit accuracy.
• Reduced Board Space: Integration of multiple resistors saves valuable board space.
• Enhanced Stability: Low temperature coefficient and high stability ensure consistent performance.
• Simplified Assembly: Fewer components to place and solder reduces assembly time and cost.
• Increased Reliability: Robust design and construction ensure long-term reliability.

These resistor networks are available in a variety of resistance values and configurations to meet specific application requirements. Available in through-hole and surface-mount packages, the R3762 provides flexibility for different assembly methods. The manufacturer's datasheet provides detailed specifications, including resistance values, tolerance, temperature coefficient, and power rating. Adhering to recommended handling practices and operating the device within specified limits is crucial for optimal performance and reliability.
