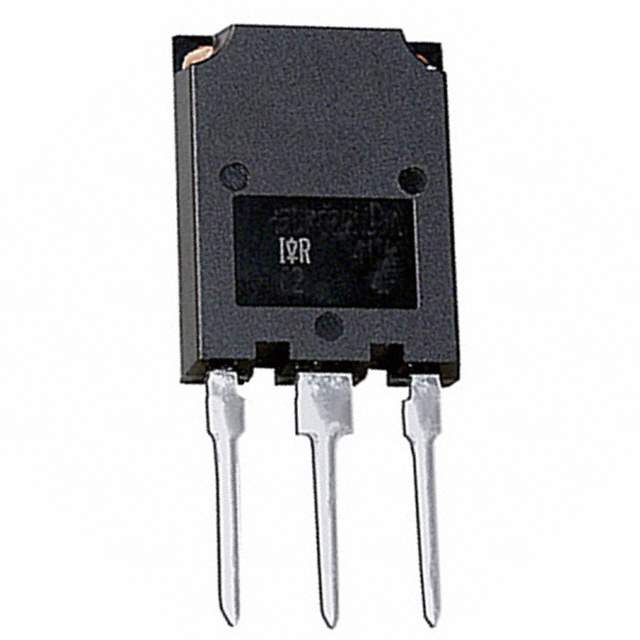

IRG4PSH71U Real Image
Same model may have multiple batches, images only for reference.

IRG4PSH71U

Part No IRG4PSH71U
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description INSULATED GATE BIPOLAR TRANSISTOR | IGBT 1200V 99A 350W SUPER247
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Bulk
Status Obsolete
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 99A
Current - Collector Pulsed (Icm) 200A
Vce(on) (Maximum) at Vge, Ic 2.7V at 15V, 70A
Maximum Power 350W
Switching Energy 4.77mJ (on), 9.54mJ (off)
Input Type Standard
Gate Charge 370nC
Td (on/off) at 25°C 51ns/280ns
Test Condition 960V, 70A, 5Ohm, 15V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-274AA
Supplier Device Package SUPER-247 (TO-274AA)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1188313-IRG4PSH71U
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRG4PSH71U CAD Model

Description

The Infineon IRG4PSH71U is an obsolete IGBT type electronic component manufactured by Infineon Technologies.

  • Its Win Source Part Number is 1188313.
  • The component has a SUPER-247 (TO-274AA) supplier device package and is bulk packaged.
  • It has a current - collector (Ic) (maximum) of 99A and a voltage - collector emitter breakdown (maximum) of 1200V.
  • The product specification provides detailed information about its features and uses, including its temperature range, gate charge, switching energy, and more.
