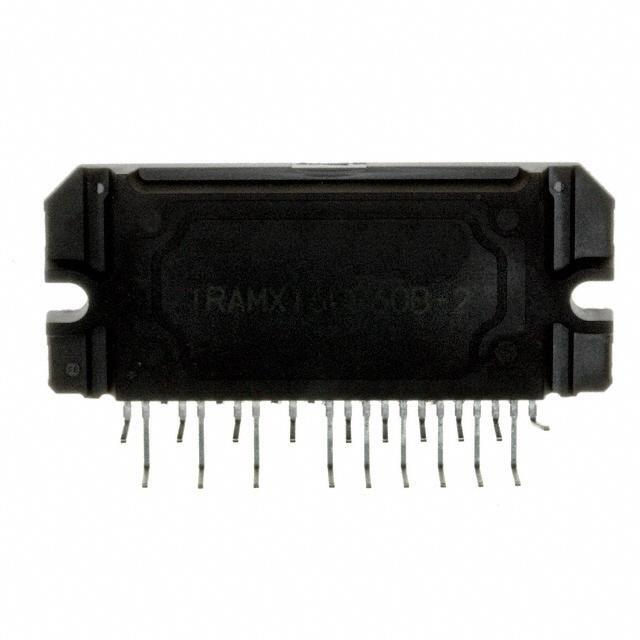

IRAMX16UP60B-2 Infineon Technologies
Same model may have multiple batches, images only for reference.

IRAMX16UP60B-2

Part No IRAMX16UP60B-2
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description IC PWR HYBRID 600V 16A SIP2 / Power Driver Module IGBT 3 Phase 600 V 16 A 23-PowerSIP Module, 19 Leads, Formed Leads
Datasheet
IRAMX16UP60B-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Power Driver Modules
Mfr Infineon Technologies
Series iMOTION™
Package Tube
Product Status Obsolete
Type IGBT
Configuration 3 Phase
Current 16 A
Voltage 600 V
Voltage - Isolation 2000Vrms
Mounting Type Through Hole
Package / Case 23-PowerSIP Module, 19 Leads, Formed Leads
Standard Package 80 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 813309-IRAMX16UP60B-2
Ultra Librarian 3D Model Ultra Librarian IRAMX16UP60B-2 CAD Model

Description

The iMOTION™ series power driver module 813309-IRAMX16UP60B-2 is a 3-phase IGBT module designed for high power applications from Infineon Technologies.

  • Voltage Rating: 600V
  • Package: 23-PowerSIP module
  • Leads: 19, Formed
  • Current Rating: 16A
  • Voltage Isolation: 2000Vrms
  • Mounting: Through Hole
  • Status: Obsolete
  • MSL Level: 1
