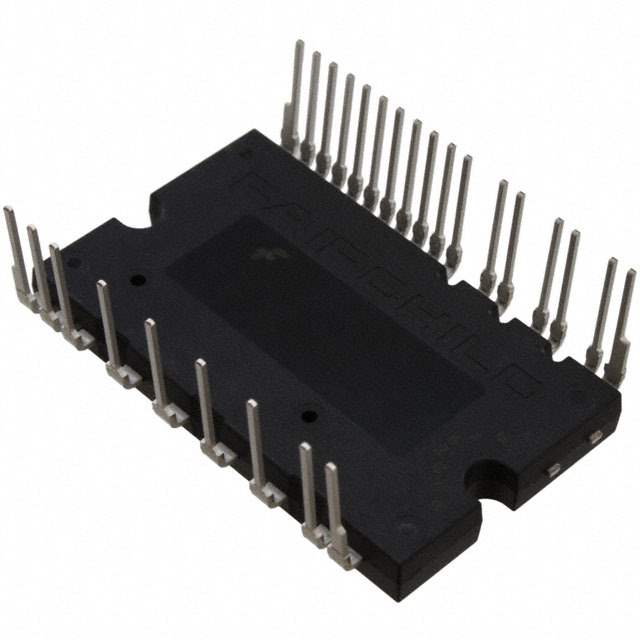

FNA41560B2 Real Image
Same model may have multiple batches, images only for reference.

FNA41560B2

Part No FNA41560B2
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description Smart Power Module / MODULE SPM 600V 15A SPMAA
Datasheet
FNA41560B2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Status Active
Type IGBT
Configuration 3 Phase
Current 15A
Voltage 600V
Isolation Voltage 2000Vrms
Dimension 26-PowerDIP Module (1.024", 26.00mm)
Win Source Part Number 204252-FNA41560B2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 72
Family Name FNA41560B2
Introduction Date December 01, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian FNA41560B2 CAD Model

Description

The Fairchild/ON Semiconductor FNA41560B2 is a high-performance IGBT component that has a voltage rating of 600V and a current rating of 15A. This component has a 3-phase configuration and an isolation voltage of 2000Vrms. It is an active component that is widely used in various discrete semiconductor products. The supply and demand status of this component is limited. It is a reliable and durable component that is suitable for various electronic applications.
