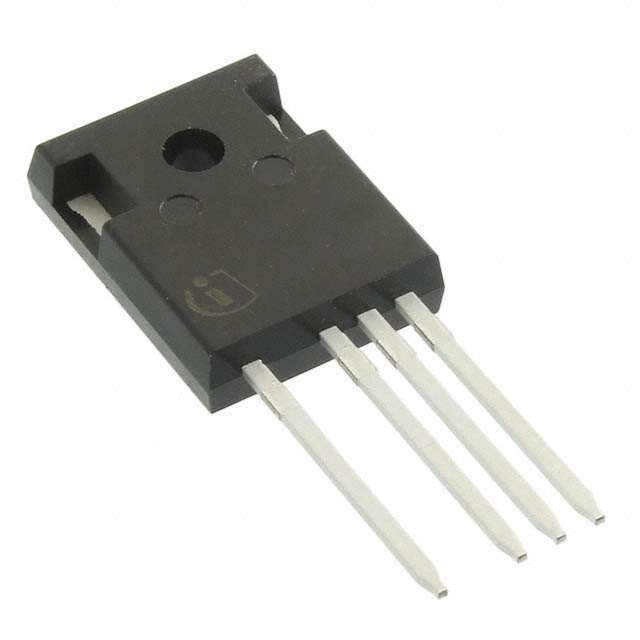

The Infineon Technologies IPZ60R060C7XKSA1 is an N-channel MOSFET transistor from Infineon Technologies, belonging to the CoolMOS™ C7 series.

• Package: TO-247-4
• Drain to Source Voltage: 600 V
• Maximum Continuous Drain Current @ 25°C: 35A (Tc)
• Rds On (Max) @ Id, Vgs: 60mOhm @ 15.9A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 68 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 2850 pF @ 400 V
• Temperature Range: -55°C to 150°C (TJ)
• Applications: Ideal for use in transistors, FETs, MOSFETs, and other discrete semiconductor products
