IPS5551T Infineon Technologies

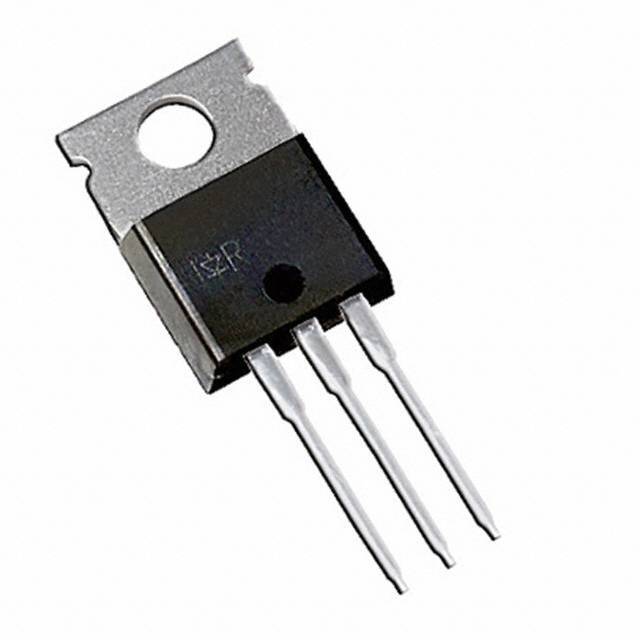

Same model may have multiple batches, images only for reference.

IPS5551T

Part No IPS5551T
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Smart High-Side Current Limit Switch / IC MOSFET HS PWR SW 100A TO-220
Datasheet
IPS5551T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 6 V to 18 V
Supply Voltage - Operating Not Required
Current - Output (Max) 35A
Rds On (Typ) 4.6 mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Over Temperature
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package SUPER-220 (TO-273AA)
Win Source Part Number 069099-IPS5551T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IPS5551
Introduction Date June 23, 2002
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IPS5551T CAD Model

Description

The Infineon Technologies IPS5551T is an integrated circuit that is designed for use in general purpose switching applications.

  • Input Type: Non-inverting
  • Output Type: N-channel
  • Maximum Current Output: 35A
  • Voltage Load Range: 6V to 18V
  • Rds On (Typ): 4.6 mOhm
  • Drain-Source Breakdown Voltage: 650V
  • Package: SUPER-220 (TO-273AA)
  • Mounting: Through hole
