Product Overview: VND7040AJTR-E

The VND7040AJTR-E is a cutting-edge automotive-grade double-channel high-side driver manufactured by STMicroelectronics. This device is designed to drive automotive applications, providing a robust and efficient solution for controlling vehicle peripheral devices. The VND7040AJTR-E is part of ST's VIPower M0-7 series, which is renowned for its reliability and performance in harsh automotive environments.

Key Features

• High-Side Switch: The product features two independent high-side drivers, which allows for direct control of loads with high efficiency.
• Current Rating: Each channel can handle a continuous current of 28A, making it suitable for high-power applications.
• On-State Resistance: The low on-state resistance of 4 mOhm typical at 25°C minimizes power dissipation and improves overall efficiency.
• Voltage Range: It operates over a wide voltage range from 5.5V to 36V, accommodating various automotive battery voltages.
• Protection Features: The device includes over-temperature protection, over-current protection, and load-dump voltage surge protection, ensuring the safety and longevity of both the driver and the load.
• Diagnostic Functions: Integrated diagnostic capabilities facilitate the detection of open-load, over-temperature, and short-circuit conditions in both on and off states.
• MultiSense Analog Feedback: The MultiSense feature provides proportional load current sense, VCC supply voltage, and VDS of each channel, which is crucial for real-time monitoring and control.

Applications

The VND7040AJTR-E is designed for a wide range of automotive applications, including but not limited to:

• Automotive LED lighting
• Heating, Ventilation, and Air Conditioning (HVAC) systems
• Engine control units
• Body control modules
• Automotive power distribution systems

Quality and Reliability

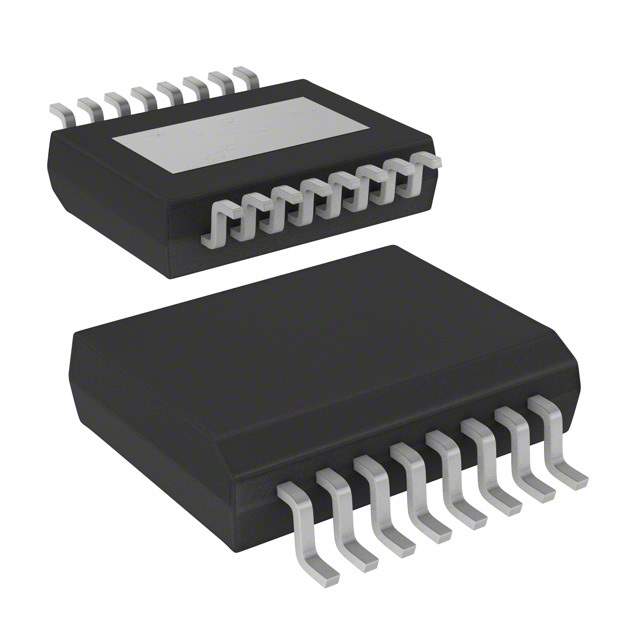

As an automotive-grade product, the VND7040AJTR-E meets strict industry standards for quality and reliability. It is qualified under AEC-Q100, which is a critical requirement for automotive integrated circuits. The device is delivered in a PowerSSO-16 package, which is designed for advanced thermal performance and space-saving on the PCB.

With its robust design and comprehensive set of features, the VND7040AJTR-E from STMicroelectronics represents a reliable choice for automotive engineers looking to improve system performance while ensuring safety and efficiency.
