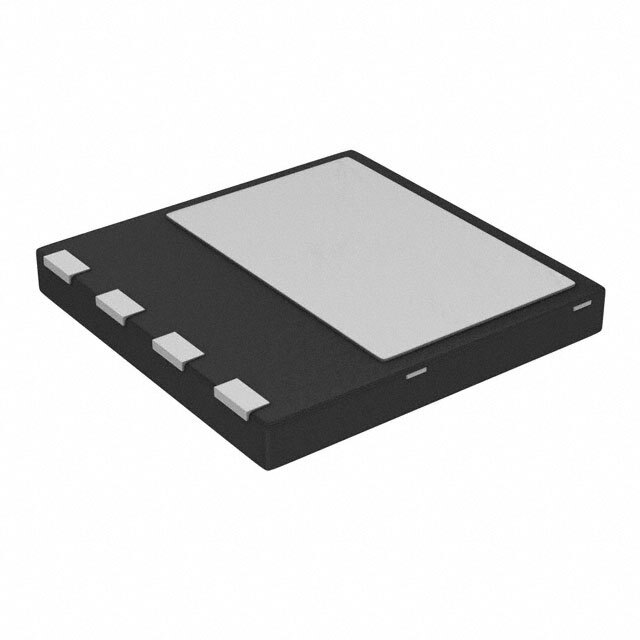

Same model may have multiple batches, images only for reference.

IPL65R195C7AUMA1

Name: IPL65R195C7AUMA1
Brand: Infineon Technologies
SKU: 1011915
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL65R195C7AUMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 650V 12A 4VSON / N-Channel 650 V 12A (Tc) 75W (Tc) Surface Mount PG-VSON-4
Datasheet	IPL65R195C7AUMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	CoolMOS™ C7
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	195mOhm @ 2.9A, 10V
Vgs(th) (Max) @ Id	4V @ 290µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1150 pF @ 400 V
Power Dissipation (Max)	75W (Tc)
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-VSON-4
Package / Case	4-PowerTSFN
Base Product Number	IPL65R
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	IPL65R195C7AUMA1-ND,INFINFIPL65R195C7AUMA1,448-IPL65R195C7AUMA1DKR,2156-IPL65R195C7AUMA1,SP001032726,448-IPL65R195C7AUMA1CT,448-IPL65R195C7AUMA1TR
Standard Package	3,000
Win Source Part Number	1011915-IPL65R195C7AUMA1
Ultra Librarian 3D Model	Ultra Librarian IPL65R195C7AUMA1 CAD Model

Alternative Products

Description

The IPL65R195C7AUMA1 is an N-channel MOSFET transistor from Infineon Technologies.

Series: CoolMOS™ C7
Package: 4-PowerTSFN
Channel Type: N-Channel
Drain to Source Voltage: 650 V
Continuous Drain Current: 12A (Tc)
On-Resistance (Max): 195mOhm @ 2.9A, 10V
Gate Charge: 23 nC @ 10 V
Input Capacitance: 1150 pF @ 400 Vds
Applications: Power supplies, motor control, and lighting
