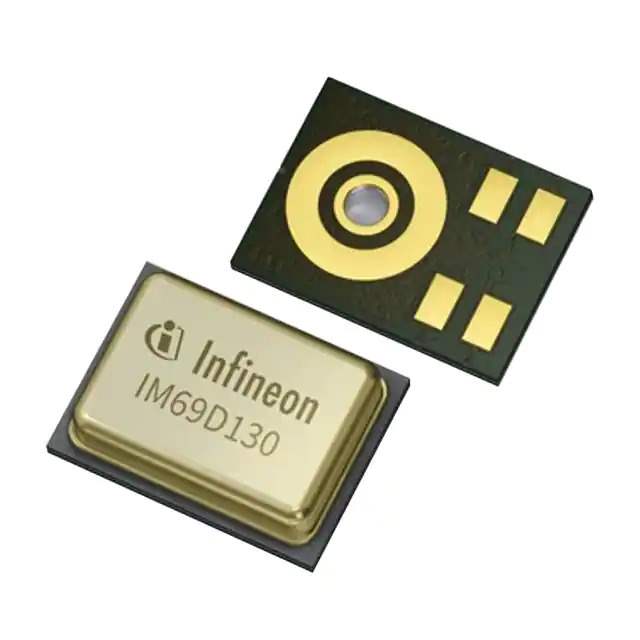

IM69D130V01XTSA1 Real Image
Same model may have multiple batches, images only for reference.

IM69D130V01XTSA1

Part No IM69D130V01XTSA1
Manufacturer Infineon Technologies
Catalog Microphones
Description MIC MEMS DIGITAL PDM OMNI -36DB / 20 Hz ~ 20 kHz Digital, PDM Microphone MEMS (Silicon) 1.62 V ~ 3.6 V Omnidirectional (-36dB ±1dB @ 94dB SPL) Solder Pads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Microphones
Mfr Infineon Technologies
Package Tape & Reel
Product Status Active
Type MEMS (Silicon)
Output Type Digital, PDM
Direction Omnidirectional
Frequency Range 20 Hz ~ 20 kHz
Sensitivity -36dB ±1dB @ 94dB SPL
S/N Ratio 69dB
Voltage Range 1.62 V ~ 3.6 V
Current - Supply 1.3 mA
Port Location Bottom
Termination Solder Pads
Size / Dimension 0.157" L x 0.118" W (4.00mm x 3.00mm)
Height (Max) 0.051" (1.30mm)
Shape Rectangular
Base Product Number IM69D130
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.10.8030
Win Source Part Number 852217-IM69D130V01XTSA1
Ultra Librarian 3D Model Ultra Librarian IM69D130V01XTSA1 CAD Model

Description

The IM69D130V01XTSA1 is a MEMS (Silicon) microphone designed for audio product applications.

  • Features: Solder Pads
  • Package: Tape and Reel
  • Size: 0.157" L x 0.118" W (4.00mm x 3.00mm)
  • Frequency Range: 20 Hz to 20 kHz
  • Output Type: Digital
  • Voltage Range: 1.62V to 3.6V
  • Direction: Omnidirectional
  • Sensitivity: -36dB ±1dB @ 94dB SPL
  • Manufacturer: Infineon Technologies
  • Product Status: Active
