Same model may have multiple batches, images only for reference.

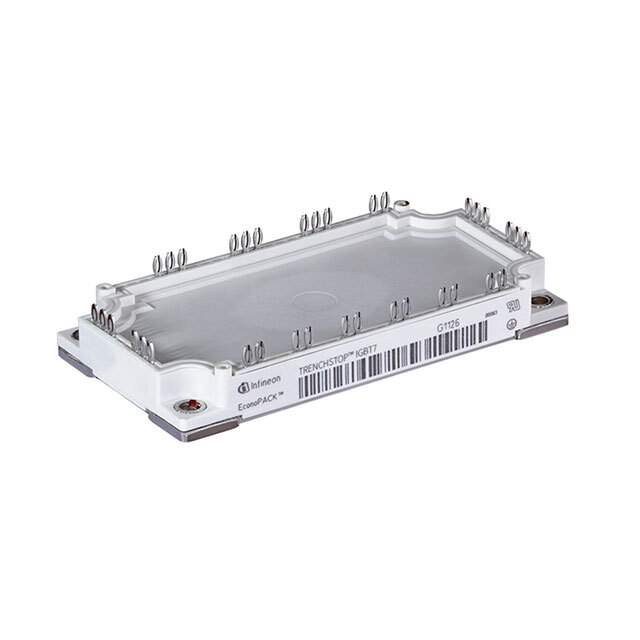

FS200R12N3T7BPSA1 Real Image
Same model may have multiple batches, images only for reference.

FS200R12N3T7BPSA1

Part No FS200R12N3T7BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description LOW POWER ECONO AG-ECONO3-4 / IGBT Module Trench Field Stop Three Phase Inverter 1200 V 200 A 20 mW Chassis Mount AG-ECONO3B
Datasheet
FS200R12N3T7BPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>IGBTs>IGBT Modules
Mfr Infineon Technologies
Series EasyPACK™3, TRENCHSTOP™
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 200 A
Power - Max 20 mW
Vce(on) (Max) @ Vge, Ic 1.8V @ 15V, 200A
Current - Collector Cutoff (Max) 16 µA
Input Capacitance (Cies) @ Vce 40.3 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-ECONO3B
Base Product Number FS200R12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 10 pcs
Win Source Part Number 1382091-FS200R12N3T7BPSA1
Ultra Librarian 3D Model Ultra Librarian FS200R12N3T7BPSA1 CAD Model

Description

The 1382091-FS200R12N3T7BPSA1 is a three-phase inverter IGBT module from the EasyPACK™3, TRENCHSTOP™ series by Infineon Technologies.

  • Maximum Power: 20 mW
  • Voltage Breakdown: 1200 V
  • Maximum Collector Current: 200 A
  • Vce(on): 1.8V @ 15V and 200A
  • Feature: NTC Thermistor
  • Mounting Type: Chassis Mount
  • Package: Module
  • Operating Temperature Range: -40°C to 175°C
