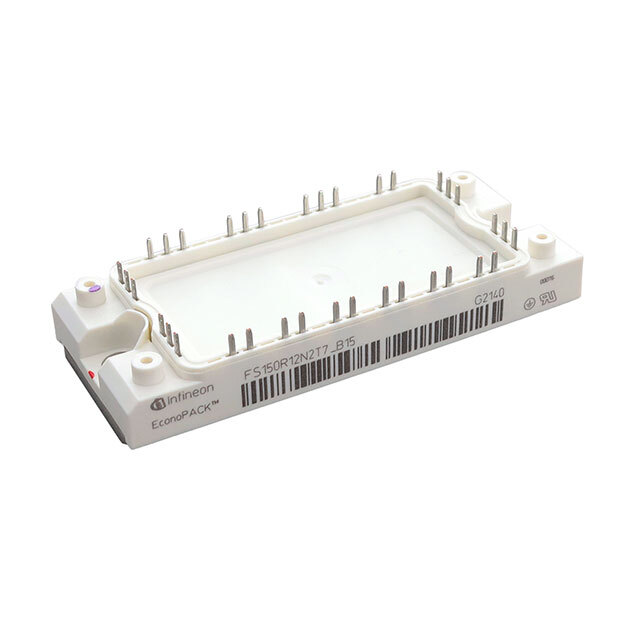

FS150R12N2T7B15BPSA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

FS150R12N2T7B15BPSA1

Part No FS150R12N2T7B15BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT Module Trench Field Stop Full Bridge Inverter 1200 V 150 A Chassis Mount AG-ECONO2B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Series EconoPACK™ 2
Packaging Tray
IGBT Type Trench Field Stop
Configuration Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 150 A
Vce(on) (Max) @ Vge, Ic 1.8V @ 15V, 150A
Current - Collector Cutoff (Max) 12 µA
Input Capacitance (Cies) @ Vce 30.1 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-ECONO2B
Base Product Number FS150R12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1479708-FS150R12N2T7B15BPSA1
Ultra Librarian 3D Model Ultra Librarian FS150R12N2T7B15BPSA1 CAD Model
