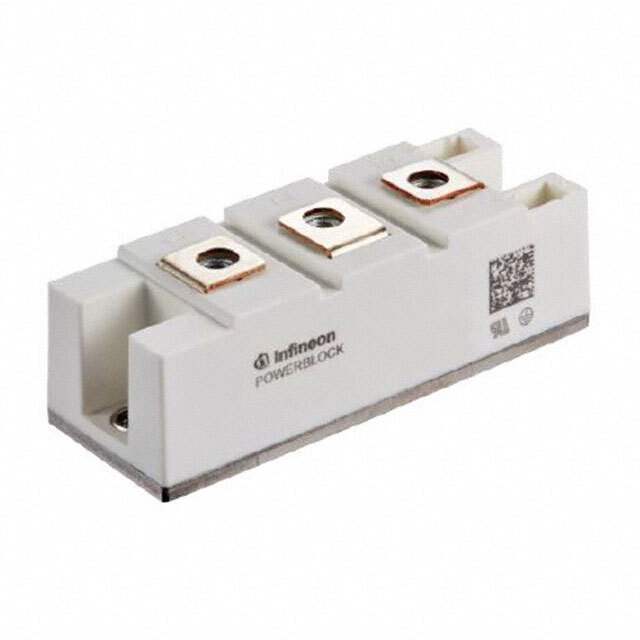

DD220N16SHPSA1 Real Image
Same model may have multiple batches, images only for reference.

DD220N16SHPSA1

Part No DD220N16SHPSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE MOD GP 1600V 273A BGPB34SB / Diode Array 1 Pair Series Connection 1600 V 273A Chassis Mount Module
Datasheet
DD220N16SHPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Tray
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) (per Diode) 273A
Voltage - Forward (Vf) (Max) @ If 1.39 V @ 500 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 1600 V
Operating Temperature - Junction 150°C (Max)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package BG-PB34SB-1
Base Product Number DD220N16
Standard Package 8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1340349-DD220N16SHPSA1
Ultra Librarian 3D Model Ultra Librarian DD220N16SHPSA1 CAD Model

Description

The Infineon DD220N16SHPSA1 is a diode array IC with a current rating of 273A. Bold the product name (e.g., BAV99S,135 → DD220N16SHPSA1) and manufacturer (e.g., Nexperia USA Inc. → Infineon).

  • Current Rating: 273A
  • Voltage Rating: 1600V
  • Forward Voltage: 1.39V @ 500A
  • Diode Configuration: 1 Pair Series Connection
  • Mounting Type: Chassis Mount
  • Package: Module
  • Operating Temperature: Up to 150°C
  • Application: Welding Equipment, Power Supplies, Motor Drives
