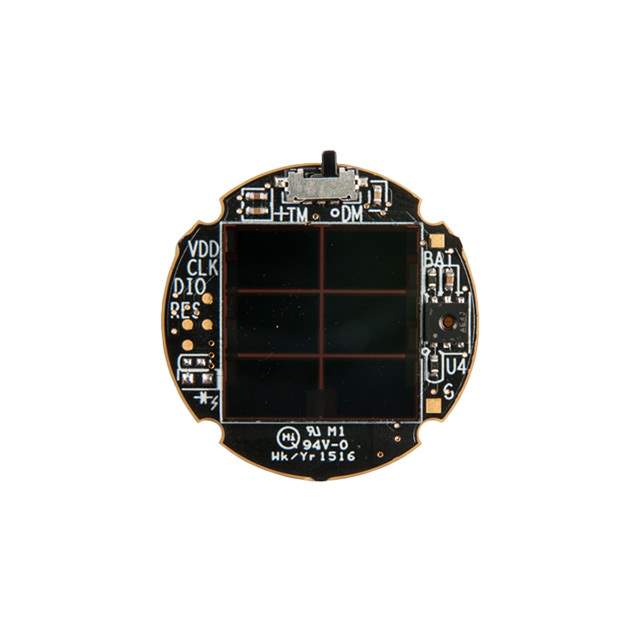

CYALKIT-E03 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Series EZ-BLE™ PRoC™
Package Bulk
Product Status Obsolete
Platform BLE-Beacon™
Type RF
Function Bluetooth Low Energy (BLE)
Utilized IC / Part CYBLE-022001-00, S6AE103A
Contents Board(s)
Base Product Number CYALKIT-E03
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.1180
Win Source Part Number 1348044-CYALKIT-E03
Ultra Librarian 3D Model Ultra Librarian CYALKIT-E03 CAD Model

Description

The CYALKIT-E03 EZ-BLE™ PRoC™ evaluation board is a development kit designed for use with Bluetooth Low Energy (BLE) applications.

  • Board Type: Evaluation Board
  • Includes: Board(s)
  • IC / Part: CYBLE-022001-00, S6AE103A
  • Platform: BLE-Beacon™
  • ECCN: 3A991A2
  • MSL: Not Applicable
  • REACH Status: Unaffected
  • HTSUS: 8473.30.1180
  • Status: Obsolete
