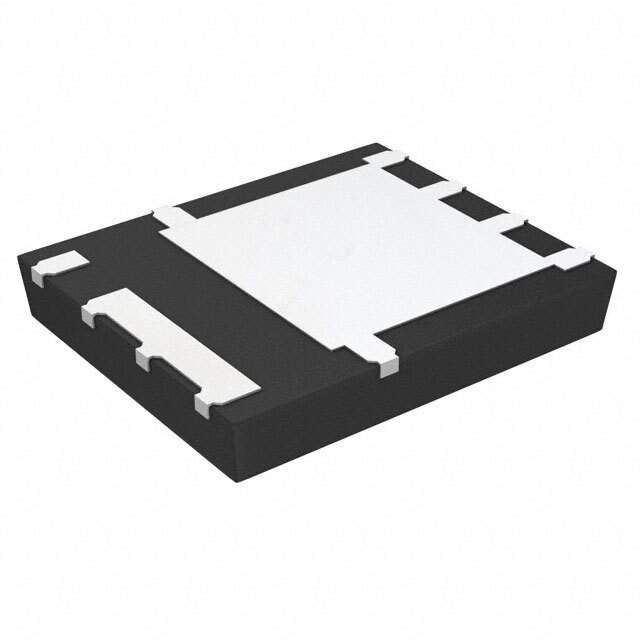

BSZ0702LSATMA1

Name: BSZ0702LSATMA1
Brand: Infineon Technologies
SKU: 1013781
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BSZ0702LSATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 17A/40A TSDSON / N-Channel 60 V 17A (Ta), 40A (Tc) 2.1W (Ta), 69W (Tc) Surface Mount PG-TDSON-8 FL
Datasheet	BSZ0702LSATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	17A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 36µA
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3100 pF @ 30 V
Power Dissipation (Max)	2.1W (Ta), 69W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TDSON-8 FL
Package / Case	8-PowerTDFN
Base Product Number	BSZ0702
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	448-BSZ0702LSATMA1CT,448-BSZ0702LSATMA1TR,448-BSZ0702LSATMA1DKR,SP001614090
Standard Package	5,000
Win Source Part Number	1013781-BSZ0702LSATMA1
Ultra Librarian 3D Model	Ultra Librarian BSZ0702LSATMA1 CAD Model

Alternative Products

Description

The Infineon Technologies OptiMOS™ 1013781-BSZ0702LSATMA1 is an N-channel MOSFET transistor used in discrete semiconductor products.

Drain-Source Voltage: 60V
Continuous Drain Current: 17A (Ta) and 40A (Tc)
Maximum Rds On: 4mOhm @ 20A, 10V
Packaging: Tape & reel
Standard Package: 5,000
Gate Charge: 22nC @ 4.5Vgs
Input Capacitance: 3100pF @ 30Vds
Temperature Range: -55°C to 150°C (TJ)
Package: PG-TDSON-8 FL
