Same model may have multiple batches, images only for reference.

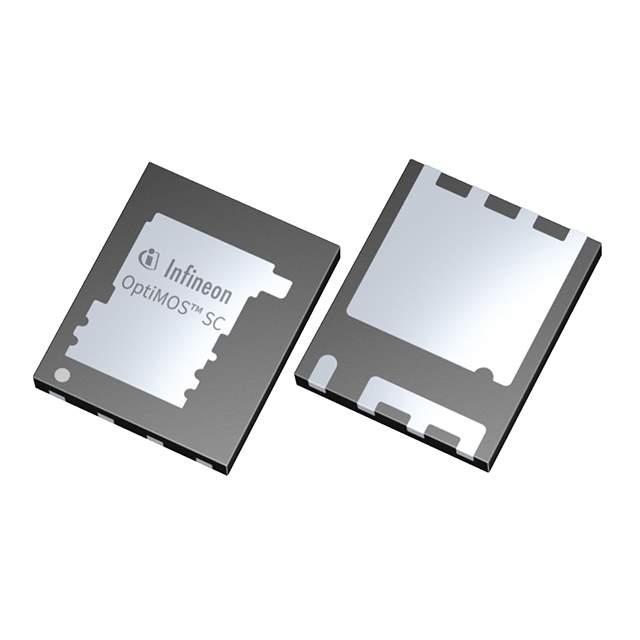

BSC070N10NS5SCATMA1 Real Image
Same model may have multiple batches, images only for reference.

BSC070N10NS5SCATMA1

Part No BSC070N10NS5SCATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 14A/82A 8SWSON / N-Channel 100 V 14A (Ta), 82A (Tc) 3W (Ta), 100W (Tc) Surface Mount PG-WSON-8-2
Datasheet
BSC070N10NS5SCATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series OptiMOS™ 5
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 14A (Ta), 82A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 7mOhm @ 40A, 10V
Vgs(th) (Max) @ Id 3.8V @ 50µA
Gate Charge (Qg) (Max) @ Vgs 38 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2700 pF @ 50 V
Power Dissipation (Max) 3W (Ta), 100W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-WSON-8-2
Package / Case 8-PowerWDFN
Base Product Number BSC070
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 448-BSC070N10NS5SCATMA1CT,448-BSC070N10NS5SCATMA1TR,SP005348852,448-BSC070N10NS5SCATMA1DKR
Standard Package 4,000
Win Source Part Number 960507-BSC070N10NS5SCATMA1
Ultra Librarian 3D Model Ultra Librarian BSC070N10NS5SCATMA1 CAD Model

Description

The Infineon Technologies BSC070N10NS5SCATMA1 is a MOSFET transistor that belongs to the discrete semiconductor products category.

  • Configuration: Single element
  • Pins: Eight
  • Part Number: 960507
  • Application: electronic devices that require a low power consumption.
  • Ideal For: applications that require a high voltage and continuous drain current.
