Same model may have multiple batches, images only for reference.

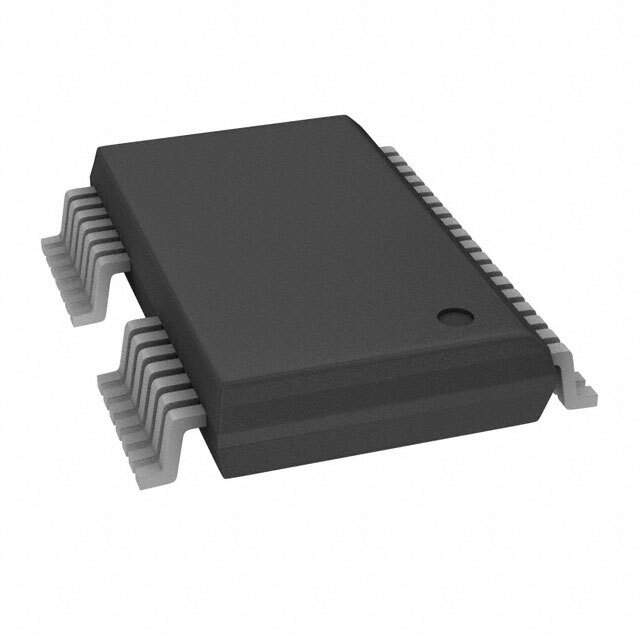

2ED020I12FAXUMA2 Real Image
Same model may have multiple batches, images only for reference.

2ED020I12FAXUMA2

Part No 2ED020I12FAXUMA2
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER IGBT DSO36
Datasheet
2ED020I12FAXUMA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage - Operating 13 V to 20 V
Logic Voltage - VIL, VIH 1.5V, 3.5V
Current - Peak Output (Source, Sink) 2.4A, 2.4A
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 1200V
Rise and Fall Time 30ns, 50ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-DSO-36
Win Source Part Number 1003791-2ED020I12FAXUMA2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2ED020I12FAXUMA2 CAD Model

Description

The Infineon Technologies Half-Bridge Driver is an integrated circuit with two independent channels, and it is suitable for use in driving IGBT, N-Channel, and P-Channel MOSFET.

  • Channels: 2
  • Suitable For: IGBT, N-Channel, P-Channel MOSFET
  • Peak Output Current: 2.4A (source, sink)
  • Maximum Bootstrap High Side Voltage: 1200V
  • Package: PG-DSO-36
  • Rise Time: 30ns
  • Fall Time: 50ns
  • Supply and Demand Status: Balanced
  • Operating Temperature: -40°C to 150°C (TJ)
  • Supply Voltage: 13V to 20V
