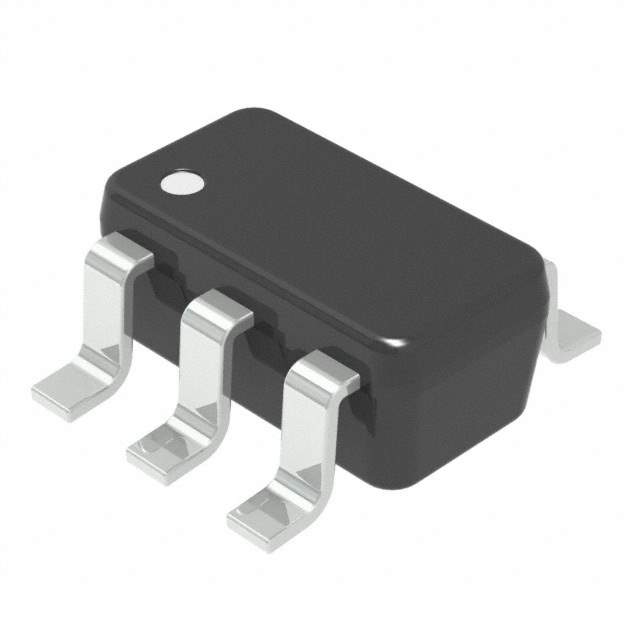

1EDN8550BXTSA1

Name: 1EDN8550BXTSA1
Brand: Infineon Technologies
SKU: 813372
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1EDN8550BXTSA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HIGH-SIDE SOT23-6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Infineon Technologies
Packaging	Reel
Driven Configuration	High-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel, P-Channel MOSFET
Supply Voltage (V)	4.5V ~ 20V
Current - Peak Output (Source, Sink)	4A, 8A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	84V
Rise / Fall Time (Typ)	6.5ns, 4.5ns
Temperature Range - Operating	-40°C ~ 150°C
Mounting Style	SMD
Manufacturer Package	SOT-23-6
Supplier Device Package	PG-SOT23-6
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813375-1EDN8550BXTSA1
Ultra Librarian 3D Model	Ultra Librarian 1EDN8550BXTSA1 CAD Model

Description

The Infineon Technologies 1EDN8550BXTSA1 is an electronic component that can be mounted in SMD style and comes in a PG-SOT23-6 Supplier Device Package.

Channel Type: Single
Input Type: Non-Inverting
Driven Configuration: High-Side
Number of Drivers: 1
Gate Type: N-Channel, P-Channel MOSFET
High Side Voltage - Max (Bootstrap): 84V
Rise / Fall Time (Typ): 6.5ns, 4.5ns
Operating Temperature: -40°C ~ 150°C
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 3,000
MSL Level: 1 (Unlimited)
