1ED3322MC12NXUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

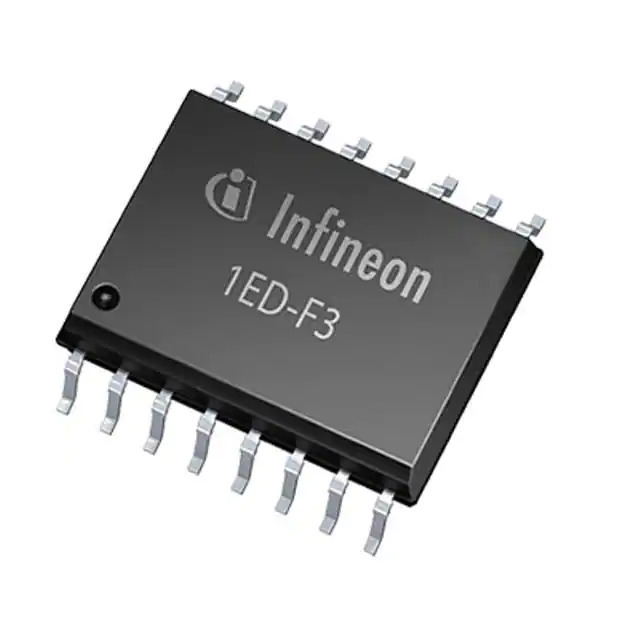

1ED3322MC12NXUMA1

Part No 1ED3322MC12NXUMA1
Manufacturer Infineon Technologies
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER / 9A, 9A Gate Driver Magnetic Coupling 5700Vrms 1 Channel PG-DSO-16-40
Datasheet
1ED3322MC12NXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Product Status Active
Technology Magnetic Coupling
Number of Channels 1
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 300kV/µs
Propagation Delay tpLH / tpHL (Max) 84ns, 92ns
Pulse Width Distortion (Max) -
Rise / Fall Time (Typ) 15ns, 15ns
Current - Output High, Low 6A, 8.5A
Current - Peak Output 9A, 9A
Voltage - Forward (Vf) (Typ) -
Voltage - Output Supply 40V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package PG-DSO-16-40
Approval Agency UL
Base Product Number 1ED332
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1356196-1ED3322MC12NXUMA1
Ultra Librarian 3D Model Ultra Librarian 1ED3322MC12NXUMA1 CAD Model

Description

The 1ED3322MC12NXUMA1 is an isolator gate driver from Infineon Technologies' EiceDriver™ series.

  • Application: Isolator, Gate Driving
  • Technology: Magnetic Coupling
  • Voltage Isolation: 5700Vrms
  • Channels: Single
  • Current Output: 6A
  • Approval: UL
  • Rise/Fall Time: 15ns
  • Current Peak Output: 9A
  • Common Mode Transient Immunity: 300kV/μs
  • Package: 16-SOIC
  • Mounting Type: Surface Mount
  • This isolator gate driver is widely used in power electronics, motor control, and renewable energy systems.
